25.4mm Diameter, XYZ, Gimbaled Pitch/Yaw Adjustable Lens Mount, 8-32 Thd. Mounting

ALHN-25.4-5RO-UU

Skip to the beginning of the images gallery

Multi-axis lens holders are a convenient way to align a lens an optical axis. Can be used in adjusting the collimating lens for laser applications.

Details

◦Five-axis adjustment holder (ALHN-5RO) can adjust lenses for wavefront and intensity distribution.
◦To focus a lens, rotate the lens tube with the lever while moving the tube forwards or backwards.
◦The centering mechanism is fitted with a nut clamp, and the focus adjustment is fitted with a screw clamp.
◦Singlet/doublets up to 28 mm thick can be used.

More Information

More Information
Name	25.4mm Diameter, XYZ, Gimbaled Pitch/Yaw Adjustable Lens Mount, 8-32 Thd. Mounting
Weight	0.4100kgs
Guide	Multi-axis lens holders (ALHN-3/ALHN-5) on a baseplate are available. WEB Reference Catalog Code/W4511-2 X-Y lens holders (LHCM) without a focus adjustment function are also available. WEB Reference Catalog Code/W4512-2 Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
Attention	Two lens spacers are included with these mounts to allow positioning of the lens within the mount.

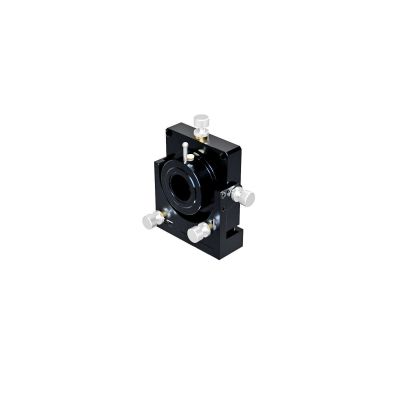

Image Label	Five-axis Lens Holder 8-32UNC for 25.4mm Optic
Diameter	25.4mm
Number of Control Axes	5 Axes
Mounting Thread	8-32UNC
Compatible Optics Diameter	φ25.4mm
Compatible Optics Thickness	0 - 28mm
Optic Thread	M26.25 P0.75
Centering Adjustment Range	φ6mm
Centering Adjustment Resolution	0.25mm/rotation
Tilt Range /Tilt	±4°
Tilt Range /Rotation	±4°
Tilt Resolution /Tilt	about 0.5°/rotation
Tilt Resolution /Rotation	about 0.5°/rotation
Focus Adjustment Range	±3mm
