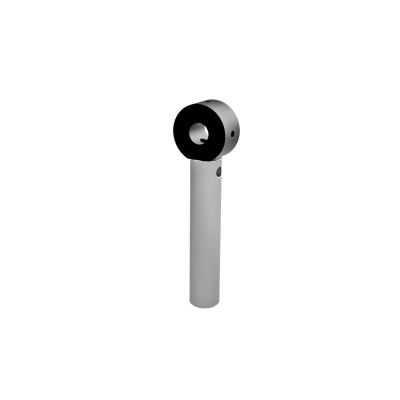

Adapter for Selfoc® Lens Claw

MLH-10ADP-1

Skip to the beginning of the images gallery

Holders for micro lenses of φ3mm or less. Designed to hold small optics at the end of a long and thin arm to allow other optical elements to be placed close to the element being held. Typical uses include collimator lenses for fiber or laser diodes.

Details

More Information

More Information
Name	Adapter for Selfoc® Lens Claw
Weight	0.0600kgs
Guide	A tapped M6 screw hole on the end of the MLH-SF allows the holder to be directly mounted on a post. Because there is no step on the arm, lens of thickness 2mm or higher can be fixed.
Attention	Because the tip of the arm has a V groove, rectangular optics can be mounted tilted. Either fix at a position away from the V groove, or fix with the optic glued to the flat plane on the top of the arm. The MLH-10ADP-2 cannot be mounted on two-axis pinholes/objective holders (TAT) other than the FOP. When the MLH-10ADP-2 is mounted on an FOP, it is necessary to remove the FOP adapter. Delivery of MLH-10ADP-2 and MLH-SF assembled on the FOP is available. Contact our International Sales Division for more information.
Image Label	Adapter for Selfoc® Lens Claw
Compatible Optics Diameter	-

In stock

SKU

MLH-10ADP-1

$24.49

Adapter for Selfoc® Lens Claw
