Gimballed Beamsplitter Mounts (Micrometer Type)

BHAN-M

Gimballed Beamsplitter Mounts (Micrometer Type)
In stock
SKU
BHAN-M

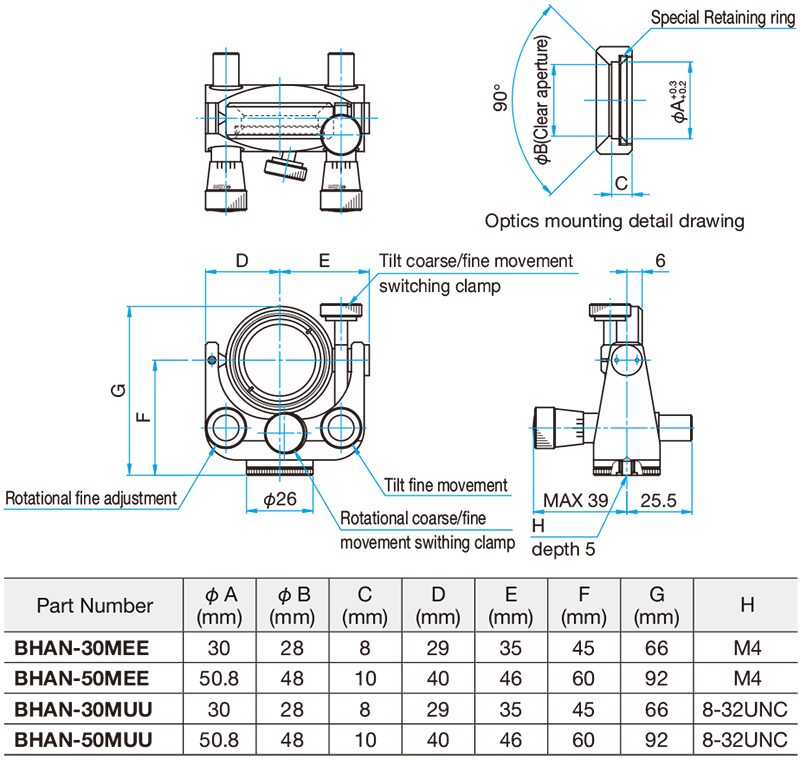

Gimbal mirror mounts with improved mirror frame for maintaining clear aperture at 45 degrees incidence.
Provide a transmitted beam diameter virtually the same as the reflected beam diameter.
Appropriate for beam separating optical systems or Michelson interferometer.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Diameter Delivery Price Add to cart
i
Gimballed Beamsplitter Holder M4 Micrometer Adjust for 30mm Optic
BHAN-30M-EE
30mm
in stock
$271.00
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 3 - 5mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.54°/rotation
Resolution /Rotation about 0.68°/rotation
i
Gimballed Beamsplitter Holder 8-32UNC Micrometer Adjust for 50mm Optic
BHAN-50M-UU
50mm
in stock
$317.00
Compatible Optics Diameter φ50mm, φ50.8mm
Compatible Optics Thickness 5 -8mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.31°/rotation
Resolution /Rotation about 0.48°/rotation
i
Gimballed Beamsplitter Holder
BHAN-30M
2 weeks
$281.00
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 3 - 5mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.54°/rotation
Resolution /Rotation about 0.68°/rotation
i
Gimballed Beamsplitter Holder M4 Micrometer Adjust for 50mm Optic
BHAN-50M-EE
50mm
in stock
$317.00
Compatible Optics Diameter φ50mm, φ50.8mm
Compatible Optics Thickness 5 -8mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.31°/rotation
Resolution /Rotation about 0.48°/rotation
i
Gimballed Beamsplitter Holder
BHAN-50M
2 weeks
$328.00
Compatible Optics Diameter φ50mm, φ50.8mm
Compatible Optics Thickness 5 -8mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.31°/rotation
Resolution /Rotation about 0.48°/rotation
i
Gimballed Beamsplitter Holder 8-32UNC Micrometer Adjust for 30mm Optic
BHAN-30M-UU
30mm
in stock
$271.00
Compatible Optics Diameter φ30mm
Compatible Optics Thickness 3 - 5mm
Fine-Adjustment Range /Tilt ±4°
Fine-Adjustment Range /Rotation ±4°
Resolution /Tilt about 0.54°/rotation
Resolution /Rotation about 0.68°/rotation

You must be logged in to ask questions

◦Basic functions other than the mirror frame are the same as those of MHAN.
