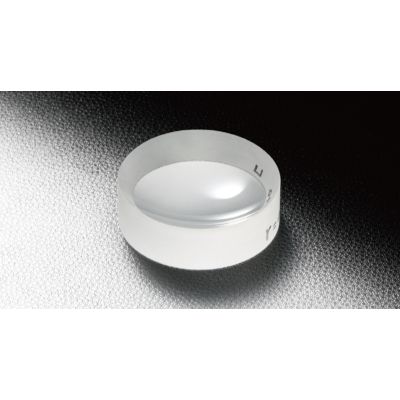

Concave Mirror Substrate 50mm Diameter 20mm Focal Length

TCBS-50C16-40

Skip to the beginning of the images gallery

Coatings on all concave mirror substrate models are available. Pre-coated aluminum concave mirrors are available. These substrates are mainly used as the primary mirror in a reflecting telescope or as reflection mirror of a collimating optical system light-source.

Details

◦Large selection from outer size to radius of curvature is available on our website and in our catalog.
◦Contact our Sales Division for your choice of coating specifications.

More Information

More Information
Name	Concave Mirror Substrate 50mm Diameter 20mm Focal Length
Weight	0.0800kgs
Standard Coatings Available	Yes
Guide	For high power lasers use concave substrates (LCBS) suitable for Laser resonator applications. WEB Reference Catalog Code/W3143
Remark	-
Attention	The back side of the substrate has a ground surface; it is not usable for transmission. For transmission we recommend plano concave lenses (SLB-N). WEB Reference Catalog Code/W3050 For cold-mirror or partial reflection application, please contact our Sales Division for a concave mirror on the back side polished. The outer edge of the concave surface is chamfered, the thickness of the edge varies therefore use the back side of the substrate as datum.
Diameter φD	50mm
Focal length	20mm
Material	BK7
Spherical surface accuracy	λ/2
Curvature radius tolerance	±2%
Coating	Uncoated
Clear aperture	85% of the diameter
Surface Quality <br> (Scratch-Dig)	20-10
Diameter φD	φ50mm
Edge thickness te	16mm
Center thickness tc	7.2mm
Radius of curvature r	40mm
Focal length f	20mm

In stock

SKU

TCBS-50C16-40

$171.00

Concave Mirror Substrate 50mm Diameter 20mm Focal Length
