Window High Power Anti-reflected Coated 355nm 30mm Diameter 1 Degree Wedge

WSQNAHP-30C05-10W-355

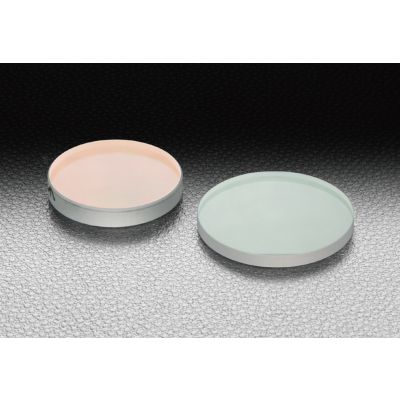

main product photo
These optical windows have high-quality and may be used when light is passed through the opposite side of the partition or in the vacuum chamber. Since the windows have anti-reflection coatings the transmittance is increased so they can be used as a window for laser irradiation windows and the observation of the sample.
Details
◦When you insert an window perpendicular to the optical path of the laser, the angle of the transmitted beam is not changed.
◦Since the high laser threshold coating is applied on the low scattering substrate, it can be used for the high-energy pulsed laser.
More Information
More Information
Base /3/d/3d2721a13ddcb6c1900b98306b96519e6d475bf9_wsqnahp_p_6qkawp7wwpvcso93.jpg
Small /3/d/3d2721a13ddcb6c1900b98306b96519e6d475bf9_wsqnahp_p_6qkawp7wwpvcso93.jpg
Standard Coatings Available No
Guide
  • We also offer AR coatings in accordance to your wavelength selection.
  • Product sizes and wedges which are not mentioned on our website or in this catalog are available, please ask our Sales Division.
Remark -
Attention
  • When wedge type windows are inserted into the optical path of the laser beam, the beam tilt of about 0.5° is expected.
  • When used at a wavelength other than the designed wavelength, the loss of transmitted light will be higher.
  • When used at a large incident angle, the transmittance may decrease. We can provide AR coatings with highest transmission at a specific angle of incidence upon request.
  • When using a high-energy laser with thin diameter, there is a possibility that damage may occur. Before using, make sure that the laser beam does not exceed the laser damage threshold.
  • Wedged substrates are marked with an arrow toward the direction of front surface at the thickest point.
Dual Use No
RoHs Yes
CE No
Diameter φD 30mm
Image Label Window High Power Anti-reflected Coated 355nm 30mm Diameter 1 Degree Wedge
Japan Stock Available 0
Japan Parts Available 0
In stock
SKU
WSQNAHP-30C05-10W-355
$518.00

Delivery in : 6-12 weeks

custom product
Customize product
Add to Wish List
These optical windows have high-quality and may be used when light is passed through the opposite side of the partition or in the vacuum chamber. Since the windows have anti-reflection coatings the transmittance is increased so they can be used as a window for laser irradiation windows and the observation of the sample.
