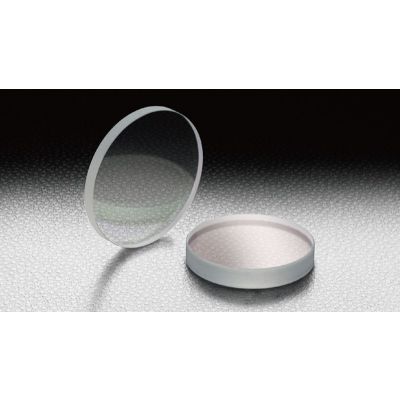

Optical Window BK7 25mm Diameter with Anti-reflection Coating
WBMA-25C02-10-BB
These optical windows have high-quality and may be used when light is passed through the opposite side of the partition or in the vacuum chamber. Since the windows have anti-reflection coatings the transmittance is increased so they can be used as a window for laser irradiation windows and the observation of the sample.
◦By anti-reflection coating with a dielectric multi-layer, it is reduced to less than 2% to 4% reflection loss of the glass surface.
◦Since we are using the high quality material, the image will not be distorted by the transmission of the glass, and the laser beam is not diffused.
◦When you insert an window perpendicular to the optical path of the laser, the angle of the transmitted beam will not be changed.
◦Since we are using the high quality material, the image will not be distorted by the transmission of the glass, and the laser beam is not diffused.
◦When you insert an window perpendicular to the optical path of the laser, the angle of the transmitted beam will not be changed.
| Name | Optical Window BK7 25mm Diameter with Anti-reflection Coating |
|---|---|
| Weight | 0.0050kgs |
| Standard Coatings Available | No |
| Guide |
▶Anti-reflection coatings are also available at your specified wavelength.
▶In addition to the products described on our website and in the catalog other sizes and wedged windows are available. |
| Diameter φD | 25mm |
| Material | BK7 |
| Surface flatness | λ/10 |
| Parallelism | ＜5″ |
| Coating | Dielectric multi-layer coating |
| Transmittance | > Average 96.5% |
| Incident angle | 0° |
| Surface Quality (Scratch-Dig) | 40−20 |
| Clear aperture | 90% of the diameter |
| Wavelength range | 400 - 1600 nm |
| Laser Damage Threshold | 3J/cm (Laser pulse width ; 10ns , Repetition frequency ; 20Hz) |
In stock
SKU
WBMA-25C02-10-BB
Customize product
These optical windows have high-quality and may be used when light is passed through the opposite side of the partition or in the vacuum chamber. Since the windows have anti-reflection coatings the transmittance is increased so they can be used as a window for laser irradiation windows and the observation of the sample.
