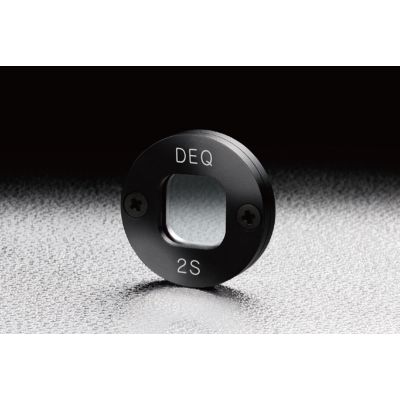

Quartz Depolarizer 180-3500nm 2.5mm
DEQ-1N
Quartz depolarizers convert linearly polarized input beams into unpolarized beams and are used in front and behind of measurement equipment that must avoid polarization.
◦1N type is made of single optical quartz plate. It has a wider transmission range, but has a larger beam deviation due to the 2 degree wedge shape.
◦2S type consists of cemented plates of optical quartz and synthetic fused silica. It does not have beam deviation, but the transmission range is not as wide as the single type.
◦OP type consists of optical contact. It has a wider transmission range without beam deviation.
◦It is similar to waveplate and mounted in a frame of ø30mm diameter.
◦2S type consists of cemented plates of optical quartz and synthetic fused silica. It does not have beam deviation, but the transmission range is not as wide as the single type.
◦OP type consists of optical contact. It has a wider transmission range without beam deviation.
◦It is similar to waveplate and mounted in a frame of ø30mm diameter.
| Name | Quartz Depolarizer 180-3500nm 2.5mm |
|---|---|
| Weight | 0.0110kgs |
| Standard Coatings Available | No |
| Guide | - |
| Remark | - |
| Attention |
|
| Image Label | Quartz Depolarizer 180-3500nm 2.5mm |
| Material | Crystalline quarts |
| Material | Crystalline quarts |
| Material propreties | Aluminum (Finishing ; Black Anodized) |
| Wavelength range | 180 - 3500nm |
| Thickness of optics | Maximum 2.5mm |
| Laser Damage Threshold<sup>*</sup> | - |
| Availability | From stock |
In stock
SKU
DEQ-1N
$288.00
Customize product
Quartz depolarizers convert linearly polarized input beams into unpolarized beams and are used in front and behind of measurement equipment that must avoid polarization.
