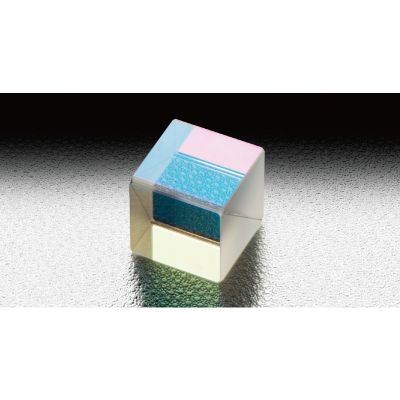

High Power Polarizing Beamsplitter Cube 15mm 355nm
PBSHP-15-3550
Polarization beam splitter specially designed for pulsed lasers such as Nd-YAG lasers and Yb lasers.
High Power Polarizing Beamsplitters have more laser durability compared to our standard Polarizing Beamsplitters (PBS).
High Power Polarizing Beamsplitters have more laser durability compared to our standard Polarizing Beamsplitters (PBS).
◦Polarizing beamsplitters split a monochromatic beam entering at zero degrees into p-polarization as transmitted and s-polarization as reflected.
◦Four surfaces of the cube are coated with narrowband multi-layer anti-reflection coating.
◦The losses of input beam of these products are minimized because of no absorption resulting from the dielectric coating.
◦For cube beamsplitters, unlike plate beamsplitters, beam deviations of transmitted beams and ghosts rarely occur.
◦Four surfaces of the cube are coated with narrowband multi-layer anti-reflection coating.
◦The losses of input beam of these products are minimized because of no absorption resulting from the dielectric coating.
◦For cube beamsplitters, unlike plate beamsplitters, beam deviations of transmitted beams and ghosts rarely occur.
| Name | High Power Polarizing Beamsplitter Cube 15mm 355nm |
|---|---|
| Weight | 0.1000kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | The two elements of these polarizing beamsplitters are bonded by optical contact. No adhesive material is used. The bonding occurs due to intermolecular forces such as van der Waals forces or hydrogen bonding when the surfaces are brought into close contact, usually within a few angstroms. |
| Attention |
|
| Design wavelength | 355nm |
| Length | 15mm |
| Material | Synthetic fused silica |
| Material | Synthetic fused silica |
| Surface flatness of substrate | λ/4 |
| Angular deviation of transmitted beam | ＜10′ |
| Coating |
Hypotenuse surface ; Dielectric multilayer coating Four surfaces ; Multilayer antireflection coating |
| Incident angle | 0° |
| Transmittance of P polarized light | ＞97% |
| Extinction ratio of transmission | Ts：Tp＝1：200 |
| Surface Quality (Scratch-Dig) | 20-10 |
| Wavelength range | 355nm |
| A＝B＝C | 15mm |
| Reflectance of S polarized light | ＞97% |
| Laser Damage Threshold<sup>*</sup> | 2J/cm2 |
| Availability | Please contact |
In stock
SKU
PBSHP-15-3550
$692.58
Customize product
Polarization beam splitter specially designed for pulsed lasers such as Nd-YAG lasers and Yb lasers.
High Power Polarizing Beamsplitters have more laser durability compared to our standard Polarizing Beamsplitters (PBS).
High Power Polarizing Beamsplitters have more laser durability compared to our standard Polarizing Beamsplitters (PBS).
