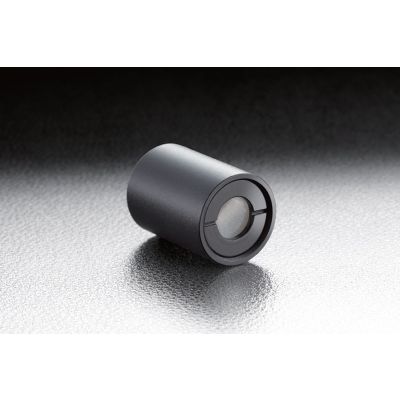

Rochon polarizing Prism Crystalline Quartz
RSPCQ-10
The polarizer separates the incident light into two linearly polarized lights that cross perpendicular. It corresponds to the wide wavelength range from ultraviolet to infrared.
◦P polarized light is emitted straight without the displacement from the optical path, and S-polarized light is emitted with a separation angle.
◦We offer the RSPCQ-10 of crystalline quartz product and RSPMF-10 of
WEB Reference Catalog Code/W3426 single crystal corresponding to the broadband more than DUV.
◦We offer the RSPCQ-10 of crystalline quartz product and RSPMF-10 of
WEB Reference Catalog Code/W3426 single crystal corresponding to the broadband more than DUV.
| Name | Rochon polarizing Prism Crystalline Quartz |
|---|---|
| Weight | 0.0360kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Image Label | Roshon polarizing Prism Crystalline Quartz |
| Material | Crystalline quarts |
| Beam Deviation | ＜3′ |
| Transmitted wavefront distortion | λ/4 |
| Coating | Uncoated |
| Laser Damage Threshold | 0.3J/cm2 (Laser pulse width ; 10ns ) |
| Surface Quality (Scratch-Dig) | 20-10 |
| Material | Crystalline Quarts |
| Wavelength Range | 200 - 2300nm |
| Extinction ratio | ＜2×10-4 |
| Separation angle | 1 - 1.5° |
| φA | 10mm |
| φD×L | φ25.4×28mm |
In stock
SKU
RSPCQ-10
$1,225.00
Customize product
The polarizer separates the incident light into two linearly polarized lights that cross perpendicular. It corresponds to the wide wavelength range from ultraviolet to infrared.
