Tube Lens (fundamental to 4th harmonic)

TL-Y4

Skip to the beginning of the images gallery

Designed specifically for fundamental and harmonic wavelengths of YAG and Fiber lasers.

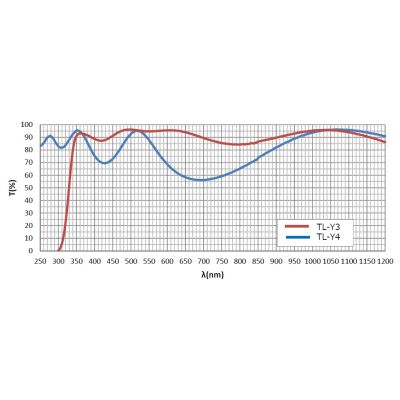

Two types are available.
TL-Y3：Compatible with wavelengths from fundamental to 3rd harmonic.
TL-Y4：Compatible with wavelengths from fundamental to 4th harmonic.

Details

More Information

More Information
Name	Tube Lens (fundamental to 4th harmonic)
Weight	0.0550kgs
Guide	Compatible with infinity-corrected objectives. Specified magnifications cannot be obtained when using with Olympus objectives. External M32 x 0.5 threading.
Attention	Please use with infinity-corrected objectives. They are not compatible with finite conjugate objectives. These tube lenses must be used by inputting collimated light from the end without threading. Inputting collimated beam from the threaded end results in large focusing spot size and blurred image due to large chromatic and spherical aberration. Operating at unspecified wavelengths might result in large aberration and low transmittance.

In stock

SKU

TL-Y4

Tube Lens (fundamental to 4th harmonic)

Resources & Downloads
