Wide Field-of-View, High-NA Objective Lenses for SWIR (900-1700nm)

PAL-SWIR-HRWF

In stock

SKU

PAL-SWIR-HRWF

Wide field of view and high NA objective lenses compatible with large size (33mm) and large number of pixels camera. Operated at SWIR range (900-1700nm).

Add to Wish List

Customize product

Filters

Enabled filters :

Remove all filters

Name

Magnification

Numerical Aperture

Working Distance WD

Delivery

Price

Add to cart

details

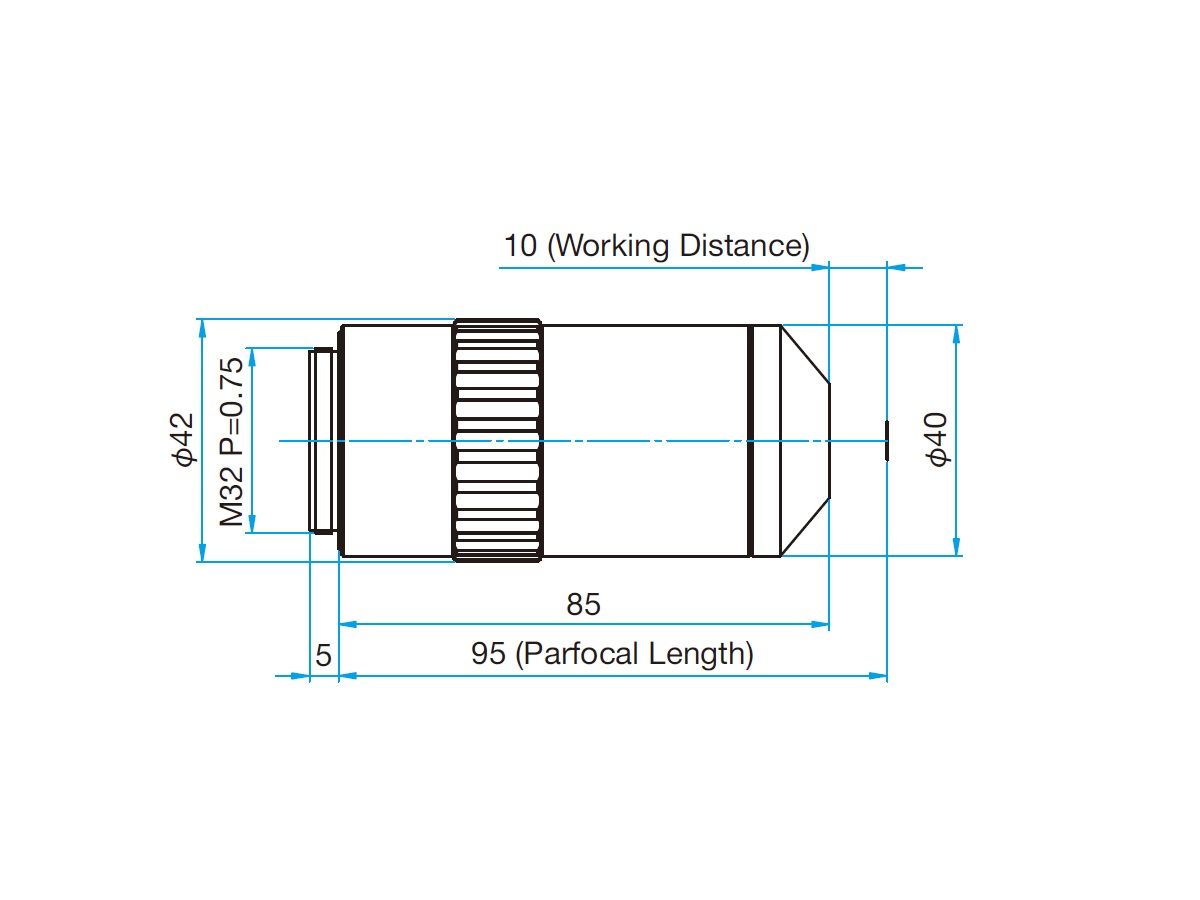

PAL-5-SWIR-HRWF

5×

0.31

10mm

6-12 weeks

$22,968.00

Resolution	2.1 um wavelength 1.3 um
Focal depth	+/-6.8 um wavelength 1.3 um
Actual field of view	6.6 mm image circle 33 mm

details

PAL-10-SWIR-HRWF

10×

0.61

10mm

6-12 weeks

$25,520.00

Resolution	1.1 um wavelength 1.3 um
Focal depth	+/-1.7 um wavelength 1.3 um
Actual field of view	3.3 mm image circle 33 mm

details

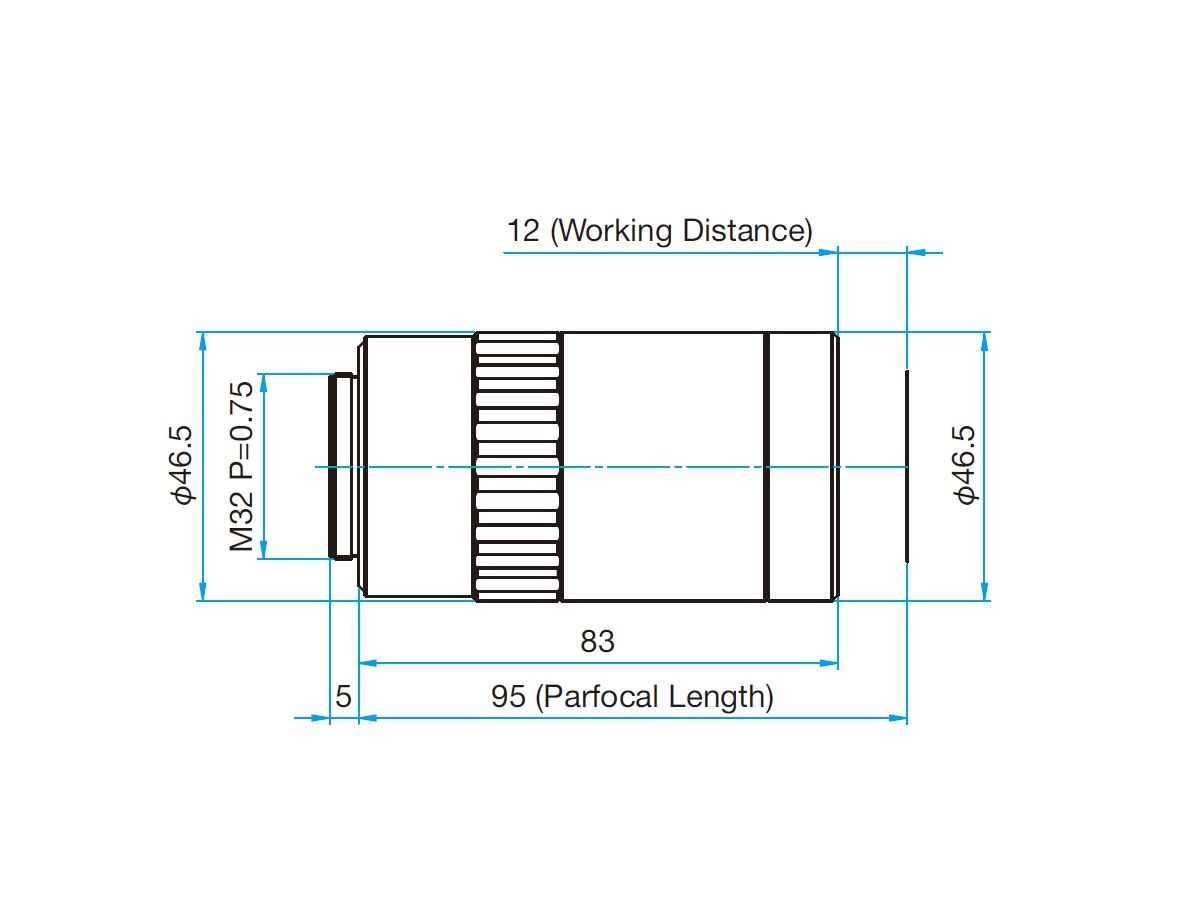

PAL-1-SWIR-HRWF

0.061

12mm

6-12 weeks

$19,140.00

Resolution	10.7 um wavelength 1.3 um
Focal depth	+/-175 um wavelength 1.3 um
Actual field of view	33 mm image circle 33 mm

details

PAL-2.5-SWIR-HRWF

0.15

13.5mm

6-12 weeks

$12,760.00

Resolution	4.3 um wavelength 1.3 um
Focal depth	+/-29 um wavelength 1.3 um
Actual field of view	13.2 mm image circle 33 mm
