Mounted High Surface Flatness Mirror

HTFM-12.7C08-1064-MHG-MP

main product photo

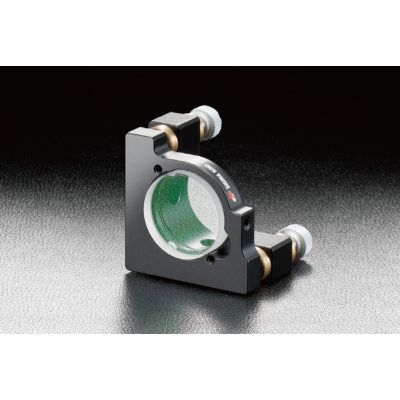

By bonding the coated surface to our Kinematic Mirror Holders, a λ/10 surface flatness is guaranteed! This product is suitable for high accuracy wavefront optical systems and interferometer requirements.
◦2 types of performance mirror holders are offered: high stability mirror holder (MHG-HS) or production model (MHG-MP).
More Information
Name Mounted High Surface Flatness Mirror
Weight 0.0400kgs
Standard Coatings Available No
Guide
  • The Production model (MHG-MP) is equipped with locking mechanisms on the adjustment screw.
  • This product can be attached to a rod (RO-**-**: separately available or a post stand (PST-**: separately available).
    • WEB Reference Catalog Code/W6052, WEB Reference Catalog Code/W6039
  • The mirror reflection wavelength characteristic are noted with the graph of the surface accuracy guaranteed mirror (HTFM).
    • WEB Reference Catalog Code/W3002
Remark -
Attention
  • The mirror surface will protrude by 2mm beyond the front surface of the holder after attachment.
  • Surface flatness data is not provided standard with the product. Please contact our Sales Division for this data at an additional charge.
  • Surface flatness will not be guaranteed when the mirror is detached.
  • Any impacted shock to the holder or mirror may result in poor surface flatness.
  • For production model (MHG-MP), the rotation center is at the external side of the mirror (support point of the holder)
  • When fixing the high stability model (MHG-HS) to a flat surface, please use supplied plate for attaching posts.
  • The optical axis will be 10mm higher after attaching the supplied plates.
Design wavelength 1064nm
Diameter φD 12.7mm
Image Label Mounted High Surface Flatness Mirror
Reflectance ＞99.5%
Wavelength Range 1064nm
Optics Diameter φD φ12.7mm
Reflectance ＞99.5%
Holder part number MHG-MP12.7
Adjustment Range /tilt ±3°
Adjustment Range /Rotation ±3°
Resolution /Tilt about 0.74°/rotation
Resolution /Rotation about 0.74°/rotation
Weight 0.04kg
In stock
SKU
HTFM-12.7C08-1064-MHG-MP
$590.00

Delivery in : 6-12 weeks

custom product
Customize product
Add to Wish List
By bonding the coated surface to our Kinematic Mirror Holders, a λ/10 surface flatness is guaranteed! This product is suitable for high accuracy wavefront optical systems and interferometer requirements.
