Fused Silica, Plano Convex Lenses (Uncoated)

SLSQ-P

More about
Fused Silica, Plano Convex Lenses (Uncoated)
In stock
SKU
SLSQ-P

Starting at $64.00

Synthetic fused silica Lens for wavelengths less than 350nm ultraviolet light.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters

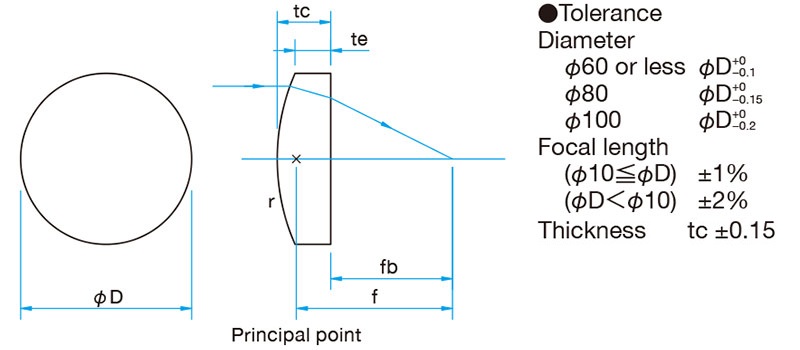

Name Diameter φD Focal length Delivery Price Add to cart
i
Plano Convex Lens Synthetic Fused Silica 5mm Diameter 30mm Focal Length
SLSQ-05-30P 		5mm 30mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ5mm
Focal length f 30mm
Edge thickness te 1.1mm
Center thickness tc 1.3mm
Back focal length fb 29.1mm
Radius of curvature r 13.8mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 200mm Focal Length
SLSQ-100-200P 		100mm 200mm
2 weeks
$898.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 200mm
Edge thickness te 3mm
Center thickness tc 17.8mm
Back focal length fb 187.8mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 20mm Focal Length
SLSQ-12.7-20P 		12.7mm 20mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 20mm
Edge thickness te 2mm
Center thickness tc 4.5mm
Back focal length fb 16.9mm
Radius of curvature r 9.20mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 70mm Focal Length
SLSQ-25-70P 		25mm 70mm
in stock
$95.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 70mm
Edge thickness te 2mm
Center thickness tc 4.5mm
Back focal length fb 66.9mm
Radius of curvature r 32.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 90mm Focal Length
SLSQ-30-90P 		30mm 90mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 4.8mm
Back focal length fb 86.7mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 150mm Focal Length
SLSQ-40-150P 		40mm 150mm
2 weeks
$150.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 150mm
Edge thickness te 2mm
Center thickness tc 5mm
Back focal length fb 146.6mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 2000mm Focal Length
SLSQ-50-2000P 		50mm 2000mm
in stock
$190.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 2000mm
Edge thickness te 3mm
Center thickness tc 3.3mm
Back focal length fb 1997.7mm
Radius of curvature r 920mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 12mm Focal Length
SLSQ-06-12P 		6mm 12mm
in stock
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 12mm
Edge thickness te 1mm
Center thickness tc 1.9mm
Back focal length fb 10.7mm
Radius of curvature r 5.52mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 350mm Focal Length
SLSQ-100-350P 		100mm 350mm
2 weeks
$739.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 350mm
Edge thickness te 3mm
Center thickness tc 11mm
Back focal length fb 342.5mm
Radius of curvature r 161mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 12.7mm Diameter 50mm Focal Length
SLSQ-12.7-50P 		12.7mm 50mm
in stock
$64.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ12.7mm
Focal length f 50mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 48.0mm
Radius of curvature r 23.00mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 100mm Focal Length
SLSQ-25-100P 		25mm 100mm
in stock
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 100mm
Edge thickness te 2mm
Center thickness tc 3.7mm
Back focal length fb 97.4mm
Radius of curvature r 46mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 150mm Focal Length
SLSQ-30-150P 		30mm 150mm
2 weeks
$97.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 150mm
Edge thickness te 2mm
Center thickness tc 3.7mm
Back focal length fb 147.5mm
Radius of curvature r 69mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 220mm Focal Length
SLSQ-40-220P 		40mm 220mm
2 weeks
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 220mm
Edge thickness te 2mm
Center thickness tc 4mm
Back focal length fb 217.3mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 4000mm Focal Length
SLSQ-50-4000P 		50mm 4000mm
6-12 weeks
$199.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 4000mm
Edge thickness te 3mm
Center thickness tc 3.2mm
Back focal length fb 3997.8mm
Radius of curvature r 1840mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 6mm Diameter 25mm Focal Length
SLSQ-06-25P 		6mm 25mm
2 weeks
$120.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ6mm
Focal length f 25mm
Edge thickness te 1mm
Center thickness tc 1.4mm
Back focal length fb 24mm
Radius of curvature r 11.5mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 600mm Focal Length
SLSQ-100-600P 		100mm 600mm
2 weeks
$629.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 600mm
Edge thickness te 3mm
Center thickness tc 7.6mm
Back focal length fb 594.8mm
Radius of curvature r 276mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 30mm Focal Length
SLSQ-15-30P 		15mm 30mm
in stock
$87.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 30mm
Edge thickness te 2mm
Center thickness tc 4.2mm
Back focal length fb 27.1mm
Radius of curvature r 13.8mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 170mm Focal Length
SLSQ-25-170P 		25mm 170mm
2 weeks
$85.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 170mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 167.9mm
Radius of curvature r 78.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 220mm Focal Length
SLSQ-30-220P 		30mm 220mm
6-12 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 220mm
Edge thickness te 2mm
Center thickness tc 3.1mm
Back focal length fb 217.9mm
Radius of curvature r 101.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 350mm Focal Length
SLSQ-40-350P 		40mm 350mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 350mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 347.8mm
Radius of curvature r 161mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 80mm Focal Length
SLSQ-50.8-80P 		50.8mm 80mm
6-12 weeks
$228.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 80mm
Edge thickness te 2.6mm
Center thickness tc 12.8mm
Back focal length fb 71.2mm
Radius of curvature r 36.8mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 12mm Focal Length
SLSQ-07-12P 		7mm 12mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 12mm
Edge thickness te 2mm
Center thickness tc 3.2mm
Back focal length fb 9.8mm
Radius of curvature r 5.52mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 100mm Diameter 1000mm Focal Length
SLSQ-100-1000P 		100mm 1000mm
6-12 weeks
$549.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ100mm
Focal length f 1000mm
Edge thickness te 3mm
Center thickness tc 5.7mm
Back focal length fb 995.1mm
Radius of curvature r 460mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 60mm Focal Length
SLSQ-15-60P 		15mm 60mm
in stock
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 60mm
Edge thickness te 2mm
Center thickness tc 3mm
Back focal length fb 57.9mm
Radius of curvature r 27.6mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25mm Diameter 250mm Focal Length
SLSQ-25-250P 		25mm 250mm
in stock
$80.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25mm
Focal length f 250mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 248.2mm
Radius of curvature r 115mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 350mm Focal Length
SLSQ-30-350P 		30mm 350mm
2 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 350mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 348.2mm
Radius of curvature r 161mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 40mm Diameter 500mm Focal Length
SLSQ-40-500P 		40mm 500mm
in stock
$140.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ40mm
Focal length f 500mm
Edge thickness te 2mm
Center thickness tc 2.9mm
Back focal length fb 498mm
Radius of curvature r 230mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 120mm Focal Length
SLSQ-50.8-120P 		50.8mm 120mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 120mm
Edge thickness te 2.8mm
Center thickness tc 9mm
Back focal length fb 113.8mm
Radius of curvature r 55.2mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 200mm Focal Length
SLSQ-50.8-200P 		50.8mm 200mm
in stock
$209.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 200mm
Edge thickness te 2.9mm
Center thickness tc 6.5mm
Back focal length fb 195.6mm
Radius of curvature r 92mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 7mm Diameter 30mm Focal Length
SLSQ-07-30P 		7mm 30mm
in stock
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ7mm
Focal length f 30mm
Edge thickness te 1.6mm
Center thickness tc 2.1mm
Back focal length fb 28.6mm
Radius of curvature r 13.8mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 15mm Diameter 90mm Focal Length
SLSQ-15-90P 		15mm 90mm
2 weeks
$72.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ15mm
Focal length f 90mm
Edge thickness te 2mm
Center thickness tc 2.7mm
Back focal length fb 88.2mm
Radius of curvature r 41.4mm
Centration ＜1′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 25.4mm Diameter 40mm Focal Length
SLSQ-25.4-40P 		25.4mm 40mm
in stock
$100.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ25.4mm
Focal length f 40mm
Edge thickness te 1.8mm
Center thickness tc 6.9mm
Back focal length fb 35.3mm
Radius of curvature r 18.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 30mm Diameter 500mm Focal Length
SLSQ-30-500P 		30mm 500mm
6-12 weeks
$88.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ30mm
Focal length f 500mm
Edge thickness te 2mm
Center thickness tc 2.5mm
Back focal length fb 498.3mm
Radius of curvature r 230mm
Centration ＜3′
i
Plano Convex Lens Synthetic Fused Silica 50mm Diameter 90mm Focal Length
SLSQ-50-90P 		50mm 90mm
2 weeks
$218.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50mm
Focal length f 90mm
Edge thickness te 3mm
Center thickness tc 11.4mm
Back focal length fb 82.2mm
Radius of curvature r 41.4mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 50.8mm Diameter 400mm Focal Length
SLSQ-50.8-400P 		50.8mm 400mm
in stock
$170.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Diameter φD φ50.8mm
Focal length f 400mm
Edge thickness te 2.9mm
Center thickness tc 4.7mm
Back focal length fb 396.8mm
Radius of curvature r 184mm
Centration ＜1′
i
Plano Convex Lens Synthetic Fused Silica 8mm Diameter 10mm Focal Length
SLSQ-08-10P 		8mm 10mm
2 weeks
$104.00
Material Synthetic fused silica
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.46
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) φD≧φ10mm ; 20-10
φD＜φ10mm ; 40-20　
Diameter φD φ8mm
Focal length f 10mm
Edge thickness te 1.5mm
Center thickness tc 3.8mm
Back focal length fb 7.4mm
Radius of curvature r 4.6mm
Centration ＜3′
Availability Please contact
i
Plano Convex Lens Synthetic Fused Silica 20mm Diameter 30mm Focal Length
SLSQ-20-30P 		20mm 30mm
in stock
$95.00
