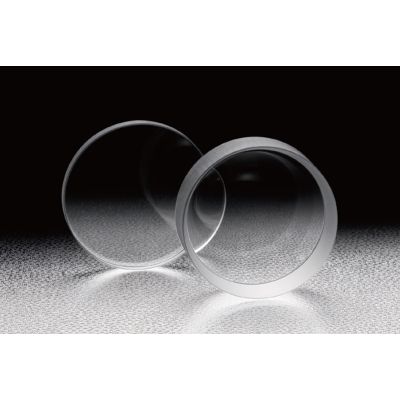

Plano Concave Lens 30mm Diameter −250mm Focal Length 750 - 1550nm
SLB-30-250NIR2
These simple negative lenses have many uses. Alone they form a virtual image of a distant object or collimated light source. Used in combination with other optics they reduce the power of the system. Sharp edges which are common in negative lenses are removed by beveling in order to reduce the likelihood of chipping.
◦There are three types of plano concave lenses available; BK7 for use in visible range to infrared wavelength range.
◦BK7 lenses are also available with three types of anti-reflection coatings, visible wavelength range, in the near-infrared range and in the infrared range.
◦Our lenses are listed by outside diameter and focal length to assist your selection according to required specifications.
◦BK7 lenses are also available with three types of anti-reflection coatings, visible wavelength range, in the near-infrared range and in the infrared range.
◦Our lenses are listed by outside diameter and focal length to assist your selection according to required specifications.
| Name | Plano Concave Lens 30mm Diameter −250mm Focal Length 750 - 1550nm |
|---|---|
| Weight | 0.0500kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Diameter φD | 30mm |
| Focal length | 250mm |
| Material | BK7 |
| Design Wavelength | 546.1nm |
| Refractive index n<sub>e</sub> | 1.519 |
| Coating | Broadband Multilayer antireflection coating (750 - 1550nm) |
| Transmmittance | > Average 98.5% |
| Laser Damage Threshold | 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz) |
| Clear aperture | 85% of the diameter |
| Surface Quality (Scratch-Dig) | 20-10 |
| Wavelength range of Antireflection Coating | 750 - 1550nm |
| Diameter φD | φ30mm |
| Focal length f | −250mm |
| Edge thickness te | 2.9mm |
| Center thickness tc | 2mm |
| Back focal length fb | −251.3mm |
| Radius of curvature r | 129.75mm |
| Centration | ＜1′ |
In stock
SKU
SLB-30-250NIR2
$74.00
Customize product
These simple negative lenses have many uses. Alone they form a virtual image of a distant object or collimated light source. Used in combination with other optics they reduce the power of the system. Sharp edges which are common in negative lenses are removed by beveling in order to reduce the likelihood of chipping.
