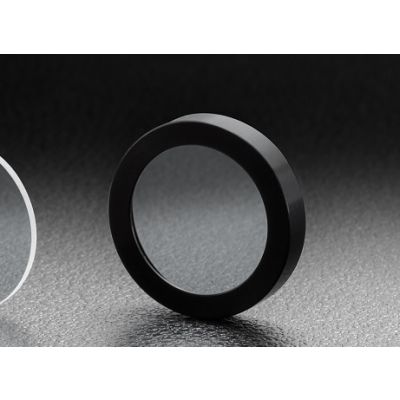

Protective Window Holder hold 33mm Diameter

PGH-36

main product photo
Protective windows can be attached to the focusing lens to minimize damage from laser fabrication. The protective window comes in 3 different sizes.
Window Holders (PGH)

Visible Spectrum Achromats
YAG Laser Focusing Lenses
-
More Information
Name Protective Window Holder hold 33mm Diameter
Weight 0.0050kgs
Standard Coatings Available No
Guide
  • Since protective windows are uncoated, surface reflections will reduce transmittance to 90%.
  • Anti-reflection coating for specific wavelength are available to improve transmittance, please contact our Sales Division for assistance.
  • Replace protective window if it is damaged or there is poor transmittance performance.
Remark -
Attention -
Image Label Protective Window Holder hold 33mm Diameter
Primary material Aluminum
Focusing lens thread A M34 P0.75mm
Clear aperture φB φ29mm
Diameter φC φ36mm
Diameter of Protective window φ33mm
In stock
SKU
PGH-36
$42.00

Delivery in : in stock

custom product
Customize product
Add to Wish List
Protective windows can be attached to the focusing lens to minimize damage from laser fabrication. The protective window comes in 3 different sizes.
Window Holders (PGH)

Visible Spectrum Achromats
YAG Laser Focusing Lenses
