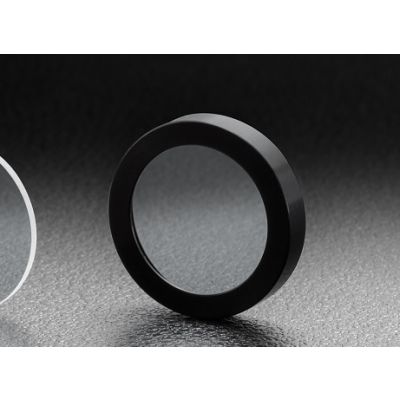

Protective Window Holder hold 21mm Diameter

PGH-24

main product photo
Protective windows can be attached to the focusing lens to minimize damage from laser fabrication. The protective window comes in 3 different sizes.
Window Holders (PGH)

Visible Spectrum Achromats
YAG Laser Focusing Lenses
-
More Information
Name Protective Window Holder hold 21mm Diameter
Weight 0.0050kgs
Standard Coatings Available No
Guide
  • Since protective windows are uncoated, surface reflections will reduce transmittance to 90%.
  • Anti-reflection coating for specific wavelength are available to improve transmittance, please contact our Sales Division for assistance.
  • Replace protective window if it is damaged or there is poor transmittance performance.
Remark -
Attention -
Image Label Protective Window Holder hold 21mm Diameter
Primary material Aluminum
Focusing lens thread A M22 P0.75
Clear aperture φB φ18mm
Diameter φC φ24mm
Diameter of Protective window φ21mm
In stock
SKU
PGH-24
$36.24

Delivery in : in stock
