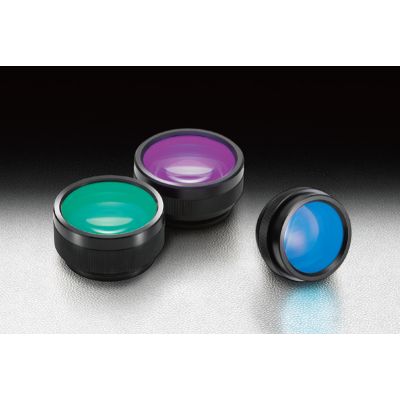

fθ Lens for YAG

fθ-100-1064L

Skip to the beginning of the images gallery

F-Theta Lenses are used for laser marking, bar code reader, laser micromachining and other laser applications.

◦F-Theta lenses convert a rotational movement of a galvanometer mirror into a linear motion on the focal plane by using distortion effects.
◦Telecentric type is also available that can be irradiated vertically to the focusing plane.
◦Also available for fundamental YAG laser (1064nm), harmonic lasers (266nm, 355nm, 532nm).

More Information

More Information
Name	fθ Lens for YAG
Weight	0.1300kgs
Standard Coatings Available	No
Guide	Transmittance value is a representative value only and is not guaranteed. If you have any questions, please feel free to contact our Sales Division. We accept orders to suit customized requirements. We also fabricate laser scanning systems which combine the galvanometer mirror and fθ lens as a unit.
Remark	-
Attention	We do not recommend using fθ lens in an imaging system because it is designed for a scanning type optical system. Please position the incident pupil of the fθ lens beam into the scanning system (galvanometer mirror). If the incident pupil is not in position of the beam scanning system, the optimum focusing spot cannot be achieved because of increased aberration.
A	53.3mm
D	25.3mm
Design wavelength	1064nm
Focal length	99.93mm
Image Label	fθ Lens for YAG
Design wavelength	1064nm
Focal length f	99.93mm
Entrance pupil diameter	φ12mm
Scanning angle	±22.9°
Scanning Range	φ80mm
Telecentric	-
Working distance (WD)	109.6mm
Transmittance [Incident angle 0°]	0.95
A	53.3mm
B	17mm
C	20mm
D	25.3mm
E	8mm
φF	φ87mm
φG	φ80mm
φH	φ69mm
φI	φ57mm
J	50.3mm
φK	φ83mm
Screw	M85P1

In stock

SKU

fθ-100-1064L

$849.00

F-Theta Lenses are used for laser marking, bar code reader, laser micromachining and other laser applications.

fθ Lens for YAG
