In stock
SKU
PAL-NUV-LC
◦Two kinds objective lenses are available. They are designed to correct aberration depending on the thickness of cover glass. (t= 0.7 mm and 1.1 mm)
◦High resolution type (NA=0.65) is also available.
◦With its long working infinity correction function; this objective lens can be used for a laser system and coaxial observation.
◦This objective lens can be used with a pulse laser of visible light (532nm).
◦Laser Damage Threshold(reference): 0.05 J/cm2 (355nm), 0.1J/cm2 (532nm) (Laser pulse width: 10ns, repetition frequency: 20Hz)
◦High resolution type (NA=0.65) is also available.
◦With its long working infinity correction function; this objective lens can be used for a laser system and coaxial observation.
◦This objective lens can be used with a pulse laser of visible light (532nm).
◦Laser Damage Threshold(reference): 0.05 J/cm2 (355nm), 0.1J/cm2 (532nm) (Laser pulse width: 10ns, repetition frequency: 20Hz)
Customize product
Filters
Enabled filters :
Remove all filters
| Name | Focal length | Magnification | Numerical Aperture | Working Distance WD | Delivery | Price | Add to cart | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-20-NUV）
PAL-20-NUV-LC11-A |
10mm | 20× | 0.4 | 17.4mm |
6-12 weeks
|
$5,005.00
|
|
|
||||||||||||||||||||
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-20-NUV）
PAL-50-NUV-HR-L-LC07-A |
4mm | 50× | 0.65 | 9.91mm |
6-12 weeks
|
$16,500.00
|
|
|
||||||||||||||||||||
|
i

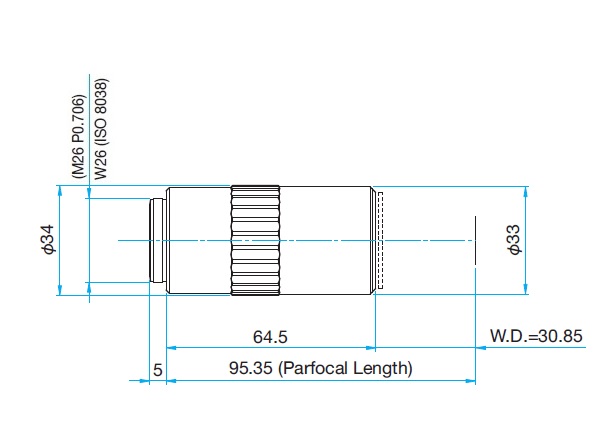

Near Ultra-violet with 1.1mm Thickness compensation Objective Lens 20mm Focal Length 10x Working Distance 30.85mm
PAL-10-NUV-LC11 |
20mm | 10× | 0.28 | 30.85mm |
6-12 weeks
|
$4,079.00
|
|
|
||||||||||||||||||||
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-20-NUV）

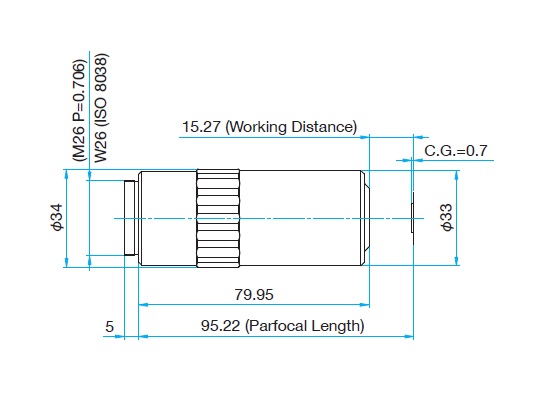

PAL-50-NUV-LC07-A |
4mm | 50× | 0.45 | 15.05mm |
6-12 weeks
|
$6,232.00
|
|
|
||||||||||||||||||||
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-50-NUV）
PAL-50-NUV-HR-L-LC11-A |
4mm | 50× | 0.65 | 9.89mm |
6-12 weeks
|
$16,995.00
|
|
|
||||||||||||||||||||
|
i

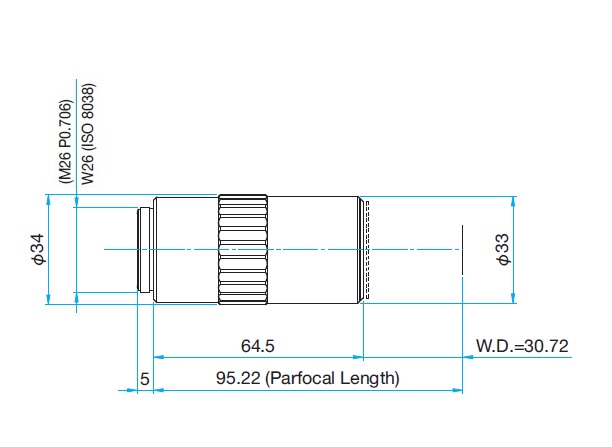

Near Ultra-violet with 0.7mm Thickness compensation Objective Lens 20mm Focal Length 10x Working Distance 30.72mm
PAL-10-NUV-LC07 |
20mm | 10× | 0.28 | 30.72mm |
6-12 weeks
|
$4,079.00
|
|
|
||||||||||||||||||||
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-20-NUV）
PAL-20-NUV-LC07-A |
10mm | 20× | 0.4 | 17.35mm |
6-12 weeks
|
$5,005.00
|
|
|
||||||||||||||||||||
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-20-NUV）

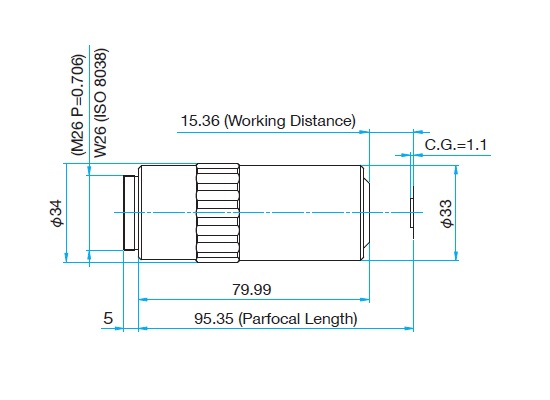

PAL-50-NUV-LC11-A |
4mm | 50× | 0.45 | 15.01mm |
in stock
|
$6,232.00
|
|
|
||||||||||||||||||||
|
i
Near Ultra-violet (NUV) Objective Lens（PAL-20-NUV）

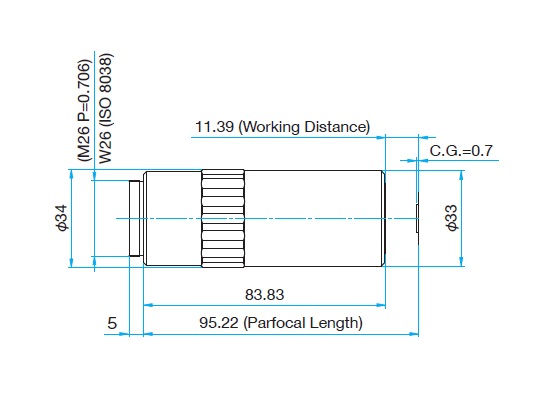

PAL-100-NUV-LC07-A |
2mm | 100× | 0.57 | 11.17mm |
6-12 weeks
|
$7,365.00
|
|
|
||||||||||||||||||||
|
i

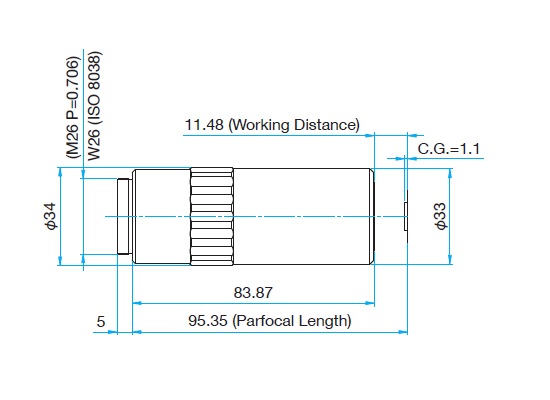

Near Ultra-violet (NUV) Objective Lens（ PAL-100-NUV-LC11-A ）
PAL-100-NUV-LC11-A |
2mm | 100× | 0.57 | 11.13mm |
6-12 weeks
|
$7,365.00
|
|
|
You must be logged in to ask questions
Glass Thickness Compensation Near Ultra-violet Objective Lenses
