Ground Glass Diffusers

DFB1 - DFSQ1

More about
Ground Glass Diffusers
In stock
SKU
DFB1 - DFSQ1
Ground glass diffuser has a large area diffusion of an incident light. It is widely used in prevention of imaging of lamp filament, to diffuse a large area of projected light or used as a screen.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name

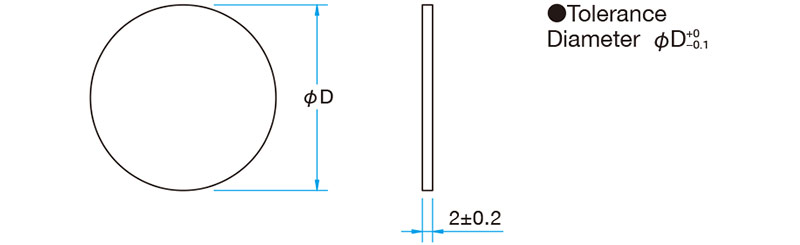

Diameter φD
Material
Delivery Price Add to cart
details
DFSQ1-50C02-800
50mm Synthetic fused silica
6-12 weeks
$107.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #800
Availability From stock
details
DFB1-30C02-400
30mm BK7
2 weeks
$32.99
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #400
Availability From stock
details
DFB1-30C02-1000
30mm BK7
2 weeks
$32.99
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #1000
Availability From stock
details
DFB1-50C02-400
50mm BK7
2 weeks
$55.00
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #400
Availability Please contact
details
DFB1-50C02-1000
50mm BK7
6-12 weeks
$55.00
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #1000
Availability From stock
details
DFSQ1-30C02-400
30mm Synthetic fused silica
2 weeks
$56.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #400
Availability From stock
details
DFSQ1-30C02-1000
30mm Synthetic fused silica
in stock
$56.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #1000
Availability From stock
details
DFSQ1-50C02-400
50mm Synthetic fused silica
6-12 weeks
$107.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #400
Availability Please contact
details
DFSQ1-50C02-1000
50mm Synthetic fused silica
6-12 weeks
$107.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #1000
Availability Please contact
details
DFB1-30C02-600
30mm BK7
in stock
$32.99
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #600
Availability From stock
details
DFB1-30C02-1500
30mm BK7
2 weeks
$32.99
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #1500
Availability From stock
details
DFB1-50C02-600
50mm BK7
in stock
$55.00
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #600
Availability From stock
details
DFB1-50C02-1500
50mm BK7
6-12 weeks
$55.00
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #1500
Availability From stock
details
DFSQ1-30C02-600
30mm Synthetic fused silica
6-12 weeks
$56.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #600
Availability From stock
details
DFSQ1-30C02-1500
30mm Synthetic fused silica
2 weeks
$56.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #1500
Availability From stock
details
DFSQ1-50C02-600
50mm Synthetic fused silica
2 weeks
$107.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #600
Availability From stock
details
DFSQ1-50C02-1500
50mm Synthetic fused silica
6-12 weeks
$107.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #1500
Availability From stock
details
DFB1-30C02-240
30mm BK7
2 weeks
$32.99
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #240
Availability From stock
details
DFB1-30C02-800
30mm BK7
2 weeks
$32.99
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #800
Availability From stock
details
DFB1-50C02-240
50mm BK7
in stock
$55.00
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #240
Availability From stock
details
DFB1-50C02-800
50mm BK7
6-12 weeks
$55.00
Material BK7
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #800
Availability From stock
details
DFSQ1-30C02-240
30mm Synthetic fused silica
2 weeks
$56.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #240
Availability From stock
details
DFSQ1-30C02-800
30mm Synthetic fused silica
2 weeks
$56.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ30mm
Sand blasted surface (sand number range) #800
Availability From stock
details
DFSQ1-50C02-240
50mm Synthetic fused silica
2 weeks
$107.00
Material Synthetic fused silica
Surface condition (Front surface) Sand blasted surface at various sand number range
Surface condition (Rear surface) Polished (Surface flatness: about 4λ)
Wavelength Range DFB1: 400 − 2000nm
DFSQ1: 200 − 2000nm
Clear aperture 90% of the diameter
Thickness 2mm
Diameter φD φ50mm
Sand blasted surface (sand number range) #240
Availability From stock

You must be logged in to ask questions

◦The ground glass diffuser with sandblasted surface at a grit range from #240 to #1500. The higher the grit number the finer the sandblast size.
◦BK7 for visible and NIR and for Ultraviolet we recommend Synthetic fused silica substrates.
