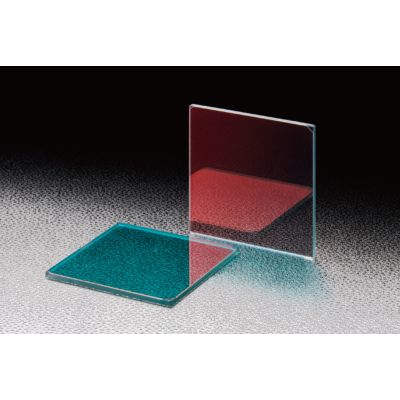

Cold Filter 50mm 700nm
CLDF-50S
The principle of the cold filter is similar to the glass that is used in a halogen lamp to protect the heat. It enables the visible range to transmit and cut-off the IR range (heat).
◦The feature of the dielectric optical coating filter is to have a steep decline of transmittance from the visible range to IR range. In addition to this; the heat absorption filter is efficient for transmitting at the visible range and cutting off the IR range.
◦It is frequently used as a IR cut filter on a CCD sensor.
◦It is also used as a filter to cut-off the heat from the illumination in a biological microscope to avoid heating up the specimen.
◦It is frequently used as a IR cut filter on a CCD sensor.
◦It is also used as a filter to cut-off the heat from the illumination in a biological microscope to avoid heating up the specimen.
| Name | Cold Filter 50mm 700nm |
|---|---|
| Weight | 0.0130kgs |
| Standard Coatings Available | No |
| Guide |
|
| Remark | - |
| Attention |
|
| Image Label | Cold Filter 50mm 700nm |
| Material | Heat Absorbing glass |
| Incident angle | 0° |
| Wavelength Range | 400 - 2000nm(Wavelength above 900nm is brocked ) |
| Surface Quality (Scratch-Dig) | 60-40 |
| Clear aperture | Circle of 90% of the diameter or Circle inscribed in a square of 90% of the dimensions |
| High transmittance range <br>(normal incident) | 400 - 600nm |
| Transmittance <br>(normal incident) | ＞80% |
| Cutoff range <br>(normal incident) | 800 - 2000nm |
| Transmittance of cutoff range <br>(normal incident) | ＜10% |
| Wavelength at 50% | 700±20nm |
In stock
SKU
CLDF-50S
$179.00
Customize product
The principle of the cold filter is similar to the glass that is used in a halogen lamp to protect the heat. It enables the visible range to transmit and cut-off the IR range (heat).
