FPPS-FCAP850-1

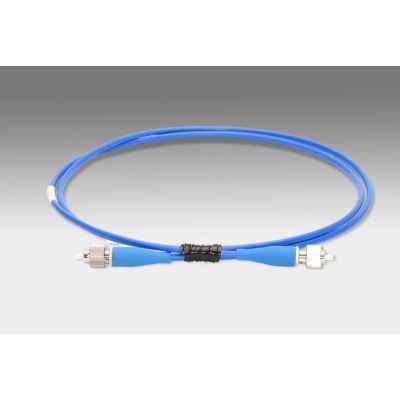

Name | PM patch cable, 760-980 nm, FC/APC - FC/APC, 1 m |
---|---|
Weight | 0.0700kgs |
Guide | - |
Attention | - |
End "A" Connector | FC/APC |
End "B" Connector | FC/APC |
Core/Cladding | 5/125 μm |
Fiber Cable Length | 1 m |
Fiber Design Wavelength | 850 nm |
End A Connector | FC/APC |
End B Connector | FC/APC |
Core / Cladding | 5/125 μm |
Fiber Jacket Outer Diameter | 3 mm |
Cable Length | 1 m |
Design Wavelength | 850 nm |
Operating Wavelength | 760-980 nm |
Cutoff Wavelength | <750 nm |
Mode Field Diameter | 5.5 ± 1 μm |
Effective Numerical Aperture | 0.098 @ 850 nm |
