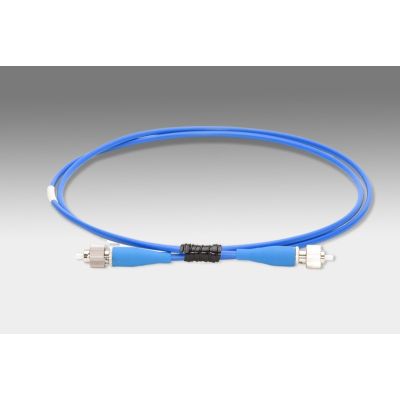

PM patch cable, 1290-1550 nm, FC/APC - FC/SPC, 2 m

FPPS-FCAP/FCSP1300-2

More Information
Name	PM patch cable, 1290-1550 nm, FC/APC - FC/SPC, 2 m
Weight	0.1400kgs
Guide	-
Attention	-
End "A" Connector	FC/APC
End "B" Connector	FC/SPC
Core/Cladding	7/125 μm
Fiber Cable Length	2 m
Fiber Design Wavelength	1300 nm
End A Connector	FC/APC
End B Connector	FC/SPC
Core / Cladding	7/125 μm
Fiber Jacket Outer Diameter	3 mm
Cable Length	2 m
Design Wavelength	1300 nm
Operating Wavelength	1290-1550 nm
Cutoff Wavelength	<1280 nm
Mode Field Diameter	9.5 ± 1 μm
Effective Numerical Aperture	0.088 @ 1310 nm
Insertion Loss Max.	0.45 dB
Back Reflection Level	40 dB
Extinction Ratio Min.	25 dB

In stock

SKU

FPPS-FCAP/FCSP1300-2

$114.45
