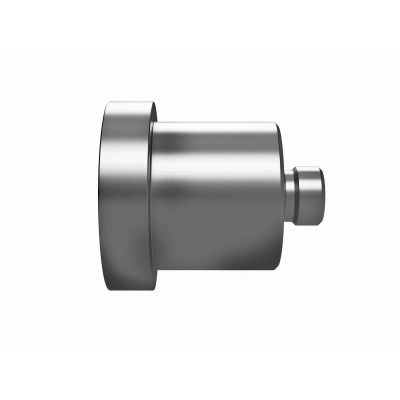

Optical Fiber Collimator Housing 25.4 Diameter with Small Aperture

FC-25.4PC

Skip to the beginning of the images gallery

Housing for Optical Fiber Collimator. Using this housing with collimator lens (FCL), the output beam from FC connector fiber is collimated.

Details

◦ Available for collimator lens with short to middle focus length.
◦ Including focus adjustment mount for collimator lens.
◦ Total four types: for PC polished and APC polished, small aperture and middle aperture

More Information

More Information
Name	Optical Fiber Collimator Housing 25.4 Diameter with Small Aperture
Weight	0.0280kgs
Guide	Optical Fiber Collimator Holder is available. It can hold the housing and adjust the beam angle. 　Exclusive holder for FC-12.7(PC/APC) is FHG-12.7.WEB Reference Catalog Code/W4141　FC-25.4(PC/APC) can be mounted on mirror holders with diameter 25.4mm. Adjustment wrench (FCS) is available. It enable adjusting the position of collimator lens with observing the output beam. WEB Reference Catalog Code/W4142
Attention	Optical Fiber Collimator Housing doesn’t include collimator lens. Please use with collimator lens (FCL) WEB Reference Catalog Code/W4143 When FC-12.7(PC/APC) is mounted on Kinematic Mirror Holder (MHG-MP12.7-NL), there are cases where the connector cannot be mounted/dismounted.
Image Label	Optical Fiber Collimator Housing 25.4 Diameter with Small Aperture
Compatible Fiber End	FC/PC
Outer Mount Diameter	φ25.4mm
Mounting Screw for Collimator Lens	M9 P0.5 mm
Compatible Collimator Lens	＜φ9.2mm
Collimate Adjustable Range	3 - 18mm
Collimate Adjustable Resolution	0.5mm / rotation

In stock

SKU

FC-25.4PC

$136.00

Housing for Optical Fiber Collimator. Using this housing with collimator lens (FCL), the output beam from FC connector fiber is collimated.
