Fiber Optics Holder for Positioning Fiber with Tilt and Fine Adjust

OFH-2DM

Skip to the beginning of the images gallery

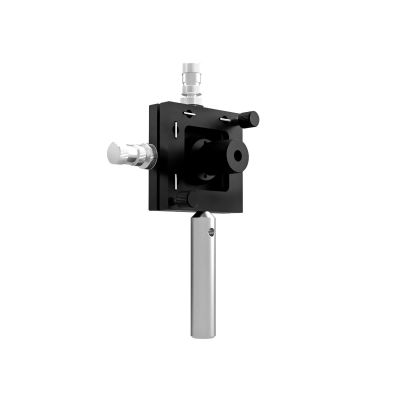

Holders used for securing and adjusting optical fibers with ferrules (fibers before connectors are attached). When used in combination with the adapter for fiber optics holders (OFH-ADP), these holders can hold φ0.3mm to φ4mm ferrules.

Details

More Information

More Information
Name	Fiber Optics Holder for Positioning Fiber with Tilt and Fine Adjust
Weight	0.1700kgs
Guide	Fiber optics holders for FC connectors (FOP) and for SMA connectors (FOP-SMA) are also available. WEB Reference Catalog Code/W4521 Post length can be modified for an additional charge. Contact our Sales Division for more information.
Attention	For information regarding use with single mode fibers, contact our Sales Division. OFH-ADP sleeves are made to order. Contact our Sales Division for delivery times. To hold bare fibers without a ferrule, we recommend using the mini-fiber optics holders (MFH). WEB Reference Catalog Code/W4523
Image Label	Fiber Optics Holder for Positioning Fiber with Tilt and Fine Adjust
Centering Adjustment Range	±1.25mm
Adjustment Range /Tilt	±2°
Adjustment Range /Rotation	±2°
Focus Adjustment Range	±1.25mm
Centering Adjustment Resolution	0.5mm/rotation
Centering Fine Adjustment Resolution	0.05mm/rotation
Adjustment Resolution /Tilt	about 0.7°/rotation
Adjustment Resolution /Rotation	about 0.7°/rotation

In stock

SKU

OFH-2DM

$427.00

Fiber Optics Holder for Positioning Fiber with Tilt and Fine Adjust
