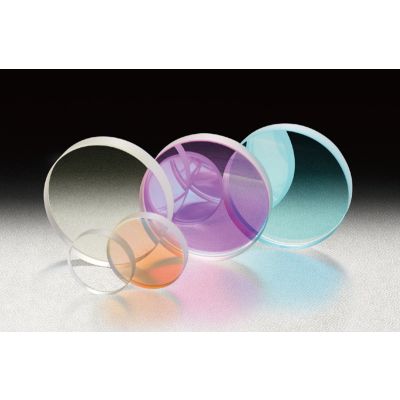

Dielectric Mirror High Power 30mm Diameter 532nm Wavelength

TFMHP-30C05-532

All dielectric coating designs are much more resistant to laser damage than typical mirrors and are suitable for use with high power laser systems.
◦All Dielectric Mirrors for High Power Laser are manufactured using dielectric multi-layer coatings of alternating high and low index layers.
◦The Mirrors are specifically designed for use at 45 degrees (AOI).
◦All dielectric coating designs are much more resistant to laser damage than typical mirrors and are suitable for use with high power laser systems.
◦Mirrors for YAG lasers are also available.
More Information
Name Dielectric Mirror High Power 30mm Diameter 532nm Wavelength
Weight 0.0090kgs
Standard Coatings Available No
Guide
  • Please consult our Sales Division for assistance in your selection and for customized products. (customized on outer diameter, wavelength characteristic, etc.) Please use the inquiry sheet.
  • WEB Reference Catalog Code/W3800
  • Also available are our surface flatness guarantee (HTFM) mirrors with accuracy guarantee after surface coating.
  • WEB Reference Catalog Code/W3002
  • Please refer to here for "Wavelength Characteristic Data (Reference Data, Transmittance: T[%]) " for each wavelength.
Remark -
Attention
  • Reflectance of dielectric mirrors will vary according to the polarization of the input beams.
  • The un-coated rear surface of the mirror is polished and the arrow on the side of the substrate points towards the coated surface.
  • Reflectance of laser line mirrors are different according to the polarization of input beams. S-polarization has the high reflectance and the wide reflective bandwidth compared with p-polarization. The reflectance in the specifications list is that of random polarization or (p-polarization reflectance + s-polarization reflectance) / 2.
  • The reflectance curves are based on actual measurements and may vary with production lots.
  • Be sure to wear laser safety goggles when checking optical path and adjusting optical axis.
  • The surface flatness is the reflected surface wavefront distortion before coating.
Design wavelength 532nm
Diameter φD 30mm
Reflectance >99%
Material BK7
Coating Dielectric multi-layer coating
Incident angle 45°±3°
Surface flatness λ/10
Parallelism <3′
Surface Quality (Scratch-Dig) 10−5
Clear aperture 90% of the diameter
Wavelength Range 532nm
Diameter φD φ30mm
Thickness t 5mm
Reflectance >99%
Laser Damage Threshold<sup>*</sup> 26.5J/cm2
Availability From stock
In stock
SKU
TFMHP-30C05-532
$246.00

Delivery in : 2 weeks

All dielectric coating designs are much more resistant to laser damage than typical mirrors and are suitable for use with high power laser systems.
