Broadband Quartz Waveplates

WPQW

Broadband Quartz Waveplates
In stock
SKU
WPQW
Air spaced two piece waveplates are suitable for use with high-energy lasers (no optical contact occurs). These products utilize birefringence of quartz and give phase difference of λ/4 (π/2, 90°) or λ/2 (π, 180°) to the input beams. λ/4 retarders convert linearly polarization to circularly and circularly polarization to linearly. λ/2 retarders convert the direction of polarization arbitrarily.
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Design wavelength Delivery Price Add to cart
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 650 - 780nm λ/2
WPQW-65/78-2M
650 - 780nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/2
Wavelength range λ 650 - 780nm
Theoretical retardation (first Wavelength) 325.3nm (at 650nm)
Theoretical retardation (Second Wavelength) 352.7nm (at 700nm)
Theoretical retardation (Third Wavelength) 376.9nm (at 750nm)
Theoretical retardation (4th Wavelength) 398.8nm (at 800nm)
Laser Damage Threshold<sup>*</sup> 7J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 700 - 1000nm λ/4
WPQW-NIR-4M
700 - 1000nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/4
Wavelength range λ 700 - 1000nm
Theoretical retardation (first Wavelength) 172.4nm (at 700nm)
Theoretical retardation (Second Wavelength) 201nm (at 800nm)
Theoretical retardation (Third Wavelength) 225.2nm (at 900nm)
Theoretical retardation (4th Wavelength) 247.2nm (at 1000nm)
Laser Damage Threshold<sup>*</sup> 7J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 400 - 700nm λ/2
WPQW-VIS-2M
400 - 700nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/2
Wavelength range λ 400 - 700nm
Theoretical retardation (first Wavelength) 184.6nm (at 400nm)
Theoretical retardation (Second Wavelength) 259nm (at 500nm)
Theoretical retardation (Third Wavelength) 300.3nm (at 600nm)
Theoretical retardation (4th Wavelength) 328.9nm (at 700nm)
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 650 - 780nm λ/4
WPQW-65/78-4M
650 - 780nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/4
Wavelength range λ 650 - 780nm
Theoretical retardation (first Wavelength) 162.2nm (at 650nm)
Theoretical retardation (Second Wavelength) 175.9nm (at 700nm)
Theoretical retardation (Third Wavelength) 188nm (at 750nm)
Theoretical retardation (4th Wavelength) 198.9nm (at 800nm)
Laser Damage Threshold<sup>*</sup> 7J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 1000 - 1600nm λ/2
WPQW-IR-2M
1000 - 1600nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/2
Wavelength range λ 1000 - 1600nm
Theoretical retardation (first Wavelength) 510.2nm (at 1000nm)
Theoretical retardation (Second Wavelength) 595.4nm (at 1200nm)
Theoretical retardation (Third Wavelength) 696.3nm (at 1400nm)
Theoretical retardation (4th Wavelength) 814.3nm (at 1600nm)
Laser Damage Threshold<sup>*</sup> 7J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 400 - 700nm λ/4
WPQW-VIS-4M
400 - 700nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/4
Wavelength range λ 400 - 700nm
Theoretical retardation (first Wavelength) 92.8nm (at 400nm)
Theoretical retardation (Second Wavelength) 130nm (at 500nm)
Theoretical retardation (Third Wavelength) 150.6nm (at 600nm)
Theoretical retardation (4th Wavelength) 164.9nm (at 700nm)
Laser Damage Threshold<sup>*</sup> 4J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 700 - 1000nm λ/2
WPQW-NIR-2M
700 - 1000nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/2
Wavelength range λ 700 - 1000nm
Theoretical retardation (first Wavelength) 344.8nm (at 700nm)
Theoretical retardation (Second Wavelength) 402nm (at 800nm)
Theoretical retardation (Third Wavelength) 450.4nm (at 900nm)
Theoretical retardation (4th Wavelength) 494.4nm (at 1000nm)
Laser Damage Threshold<sup>*</sup> 7J/cm2
Availability Please contact
i
Broadband Quartz Waveplate 30mm Diameter Wavelength Range 1000 - 1600nm λ/4
WPQW-IR-4M
1000 - 1600nm
2 weeks
$1,497.00
Material Crystalline quartz , MgF2
Material propreties Aluminum (Finishing ; Black Anodized)
Clear aperture 14×14mm
Transmitted wavefront distortion λ/4( Per one pice of substrate)
Angular deviation of beam <5″
Coating Antireflection Coating on both side (Total 4 surfaces)
Transmittance >Average 98%
type λ/4
Wavelength range λ 1000 - 1600nm
Theoretical retardation (first Wavelength) 255.1nm (at 1000nm)
Theoretical retardation (Second Wavelength) 297.7nm (at 1200nm)
Theoretical retardation (Third Wavelength) 348.1nm (at 1400nm)
Theoretical retardation (4th Wavelength) 407.1nm (at 1600nm)
Laser Damage Threshold<sup>*</sup> 7J/cm2
Availability Please contact

You must be logged in to ask questions

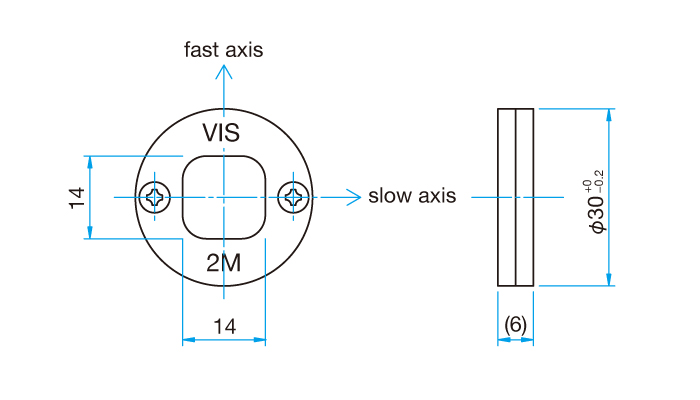

◦Air spaced type waveplates are zero-order (first-order) retardation plates (phase plates) which are assembled from pairs of crystalline quartz plates and are mounted on aluminum frames.
