Active Vibration Isolation System - Tabletop Type

TS-300LT

main product photo
An active vibration isolator counterbalances vibrations by giving instantaneous reverse phase vibrations versus generated vibrations and is suitable for vibration isolation in 0.7 − 100Hz 3 dimensional space. It also displays high vibration isolation performance even for natural frequencies in the 1 − 2Hz low frequency range for air spring type vibration isolators.
◦After installing the instrument, it performs the first leveling automatically. Thus, it can be used to maintain the horizontal state of instrument with an offset load.
◦Unlike the air spring type that is prone to cause hunting when used for instruments with a high center of gravity, it uses a coil spring making it suitable to use for instruments with a high center of gravity.

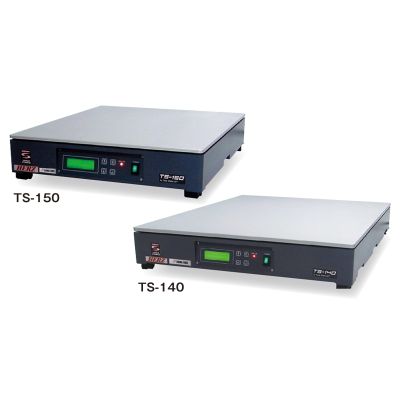

■TS-140 (TP25)/TS-150 (TP25)
◦Vibration isolation status in the vertical and horizontal directions can be checked by connecting your oscilloscope to this product from the BNC connector in the back of the unit.
■TS-300LT (TP25)/TS-300 (TP25)
◦Vibration isolation status in the vertical and horizontal Outline Drawing directions can be checked on the front menu display.
More Information
Name Active Vibration Isolation System - Tabletop Type
Weight 55.0000kgs
Guide
  • Active vibration isolation can be turned ON or OFF with the external remote switch (optional).
  • If the oscillation is too large due to insufficient stiffness of the installation site, its vibration isolation performance might deteriorate or vibration isolation might be not possible. To prevent this situation, a special table frame with high rigidity is available.
  • High Damping High Rigidity Special Table Frame (H-L-TS) (WEB Reference Catalog Code/W6006)
Attention
  • This product is manufactured by The Table Stable, Ltd. of Switzerland and sold for use only in the Asia Region (excluding India and Australia).
  • Because of the weight, delivery cost will be quoted separately. (WEB Reference Catalog Code/W6001)
