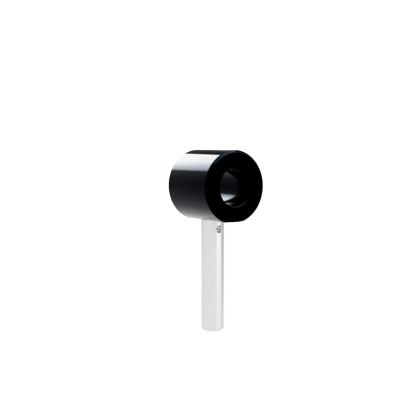

Objective Lens Holder

LHO-20.32A

Used to objective lenses in optical experiments.
◦Female threads fit a wide range of OptoSigma threads. See the compatibility table for appropriate combinations.
◦There are two styles of objective holder mounts. Both have M20.32 threads. One is the standard type (LHO-20.32) that allows placement of targets in close proximity to lenses, and the other is the hooded type (LHO-20.32A) that blocks stray light.
◦The images from the objectives will be stable due to the rigidity of the mount.
More Information
Name Objective Lens Holder
Weight 3.1800kgs
Guide
  • Post length can be changed by specifying the post length when you place an order. We may charge the difference in price depending on the length. Contact our Sales Division for more information.
  • Adapters ,TAT-18OA, adjust the center of objective lenses. A Two-axis Pinhole/Objective Holders (TAT) is also available.
  • WEB Reference Catalog Code/W4038
Attention
  • Thread compatibility with non OptoSigma threads is not guaranteed.
  • A translation stage can be used under the objective holder for fine focus adjustment.
In stock
SKU
LHO-20.32A
$38.00

Delivery in : 2 weeks

Used to objective lenses in optical experiments.
