N-BK7, Plano Concave Lenses (Uncoated)

SLB-N

More about
N-BK7, Plano Concave Lenses (Uncoated)
In stock
SKU
SLB-N

Starting at $26.52

These simple negative lenses have many uses. Alone they form a virtual image of a distant object
or collimated light source. Used in combination with other optics they reduce the power of the
system. Sharp edges which are common in negative lenses are removed by beveling in order to
reduce the likelihood of chipping.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Diameter φD Focal length Delivery Price Add to cart
i
Plano Concave Lens 10mm Diameter −15mm Focal Length Uncoated
SLB-10-15N 		10mm 15mm
in stock
$30.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated

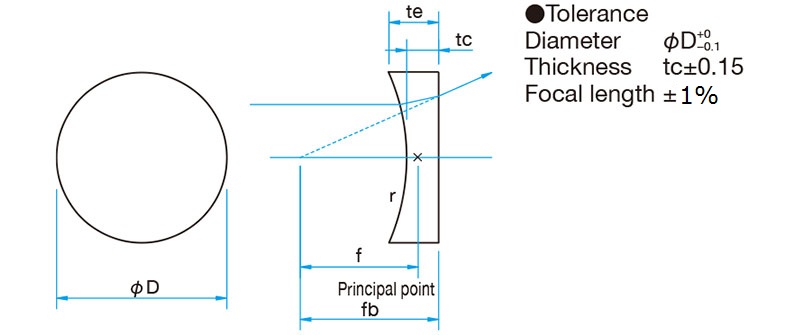

Diameter φD φ10mm
Focal length f −15mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −16.3mm
Radius of curvature r 7.79mm
Centration ＜1′
i
Plano Concave Lens 20mm Diameter −120mm Focal Length Uncoated
SLB-20-120N 		20mm 120mm
2 weeks
$30.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ20mm
Focal length f −120mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −121.3mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Plano Concave Lens 30mm Diameter −90mm Focal Length Uncoated
SLB-30-90N 		30mm 90mm
2 weeks
$34.17
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ30mm
Focal length f −90mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
i
Plano Concave Lens 10mm Diameter −30mm Focal Length Uncoated
SLB-10-30N 		10mm 30mm
in stock
$26.52
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ10mm
Focal length f −30mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Plano Concave Lens 25mm Diameter −35mm Focal Length Uncoated
SLB-25-35N 		25mm 35mm
2 weeks
$38.76
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25mm
Focal length f −35mm
Edge thickness te 7mm
Center thickness tc 2mm
Back focal length fb −36.3mm
Radius of curvature r 18.17mm
Centration ＜1′
i
Plano Concave Lens 30mm Diameter −150mm Focal Length Uncoated
SLB-30-150N 		30mm 150mm
2 weeks
$34.17
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ30mm
Focal length f −150mm
Edge thickness te 3.5mm
Center thickness tc 2mm
Back focal length fb −151.3mm
Radius of curvature r 77.85mm
Centration ＜1′
i
Plano Concave Lens 10mm Diameter −60mm Focal Length Uncoated
SLB-10-60N 		10mm 60mm
2 weeks
$26.52
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ10mm
Focal length f −60mm
Edge thickness te 2.4mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Plano Concave Lens 25mm Diameter −60mm Focal Length Uncoated
SLB-25-60N 		25mm 60mm
in stock
$37.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25mm
Focal length f −60mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Plano Concave Lens 30mm Diameter −220mm Focal Length Uncoated
SLB-30-220N 		30mm 220mm
2 weeks
$34.17
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ30mm
Focal length f −220mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −221.3mm
Radius of curvature r 114.18mm
Centration ＜1′
i
Plano Concave Lens 10mm Diameter −90mm Focal Length Uncoated
SLB-10-90N 		10mm 90mm
2 weeks
$26.52
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ10mm
Focal length f −90mm
Edge thickness te 2.3mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
i
Plano Concave Lens 25mm Diameter −90mm Focal Length Uncoated
SLB-25-90N 		25mm 90mm
2 weeks
$36.72
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25mm
Focal length f −90mm
Edge thickness te 3.7mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
i
Plano Concave Lens 40mm Diameter −60mm Focal Length Uncoated
SLB-40-60N 		40mm 60mm
2 weeks
$59.16
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ40mm
Focal length f −60mm
Edge thickness te 9.3mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Plano Concave Lens 12.7mm Diameter −25mm Focal Length Uncoated
SLB-12.7-25N 		12.7mm 25mm
in stock
$28.56
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ12.7mm
Focal length f −25mm
Edge thickness te 3.7mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
Centration ＜1′
i
Plano Concave Lens 25mm Diameter −150mm Focal Length Uncoated
SLB-25-150N 		25mm 150mm
in stock
$35.19
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25mm
Focal length f −150mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −151.3mm
Radius of curvature r 77.85mm
Centration ＜1′
i
Plano Concave Lens 40mm Diameter −100mm Focal Length Uncoated
SLB-40-100N 		40mm 100mm
2 weeks
$53.55
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ40mm
Focal length f −100mm
Edge thickness te 6mm
Center thickness tc 2mm
Back focal length fb −101.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Plano Concave Lens 15mm Diameter −25mm Focal Length Uncoated
SLB-15-25N 		15mm 25mm
in stock
$30.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ15mm
Focal length f −25mm
Edge thickness te 4.4mm
Center thickness tc 2mm
Back focal length fb −26.3mm
Radius of curvature r 12.98mm
Centration ＜1′
i
Plano Concave Lens 25.4mm Diameter −30mm Focal Length Uncoated
SLB-25.4-30N 		25.4mm 30mm
in stock
$39.78
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25.4mm
Focal length f −30mm
Edge thickness te 8.6mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Plano Concave Lens 50mm Diameter −90mm Focal Length Uncoated
SLB-50-90N 		50mm 90mm
in stock
$62.22
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ50mm
Focal length f −90mm
Edge thickness te 10.3mm
Center thickness tc 3mm
Back focal length fb −92.0mm
Radius of curvature r 46.71mm
Centration ＜1′
i
Plano Concave Lens 15mm Diameter −50mm Focal Length Uncoated
SLB-15-50N 		15mm 50mm
2 weeks
$28.56
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ15mm
Focal length f −50mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −51.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Plano Concave Lens 25.4mm Diameter −60mm Focal Length Uncoated
SLB-25.4-60N 		25.4mm 60mm
in stock
$37.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25.4mm
Focal length f −60mm
Edge thickness te 4.7mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Plano Concave Lens 50mm Diameter −150mm Focal Length Uncoated
SLB-50-150N 		50mm 150mm
2 weeks
$56.61
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ50mm
Focal length f −150mm
Edge thickness te 7.1mm
Center thickness tc 3mm
Back focal length fb −152.0mm
Radius of curvature r 77.85mm
Centration ＜1′
i
Plano Concave Lens 15mm Diameter −80mm Focal Length Uncoated
SLB-15-80N 		15mm 80mm
2 weeks
$28.56
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ15mm
Focal length f −80mm
Edge thickness te 2.7mm
Center thickness tc 2mm
Back focal length fb −81.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Plano Concave Lens 25.4mm Diameter −90mm Focal Length Uncoated
SLB-25.4-90N 		25.4mm 90mm
in stock
$35.19
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25.4mm
Focal length f −90mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
i
Plano Concave Lens 50mm Diameter −220mm Focal Length Uncoated
SLB-50-220N 		50mm 220mm
2 weeks
$56.61
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ50mm
Focal length f −220mm
Edge thickness te 5.8mm
Center thickness tc 3mm
Back focal length fb −222.0mm
Radius of curvature r 114.18mm
Centration ＜1′
i
Plano Concave Lens 20mm Diameter −30mm Focal Length Uncoated
SLB-20-30N 		20mm 30mm
in stock
$30.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ20mm
Focal length f −30mm
Edge thickness te 5.6mm
Center thickness tc 2mm
Back focal length fb −31.3mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Plano Concave Lens 25.4mm Diameter −200mm Focal Length Uncoated
SLB-25.4-200N 		25.4mm 200mm
in stock
$35.19
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ25.4mm
Focal length f −200mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −201.3mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Plano Concave Lens 50.8mm Diameter −70mm Focal Length Uncoated
SLB-50.8-70N 		50.8mm 70mm
in stock
$66.30
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ50.8mm
Focal length f −70mm
Edge thickness te 13.4mm
Center thickness tc 3mm
Back focal length fb −72.0mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Plano Concave Lens 20mm Diameter −60mm Focal Length Uncoated
SLB-20-60N 		20mm 60mm
in stock
$30.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ20mm
Focal length f −60mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −61.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Plano Concave Lens 30mm Diameter −40mm Focal Length Uncoated
SLB-30-40N 		30mm 40mm
2 weeks
$40.80
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ30mm
Focal length f −40mm
Edge thickness te 8.4mm
Center thickness tc 2mm
Back focal length fb −41.3mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Plano Concave Lens 50.8mm Diameter −100mm Focal Length Uncoated
SLB-50.8-100N 		50.8mm 100mm
in stock
$60.18
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ50.8mm
Focal length f −100mm
Edge thickness te 9.6mm
Center thickness tc 3mm
Back focal length fb −102.0mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Plano Concave Lens 20mm Diameter −90mm Focal Length Uncoated
SLB-20-90N 		20mm 90mm
2 weeks
$30.09
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ20mm
Focal length f −90mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −91.3mm
Radius of curvature r 46.71mm
Centration ＜1′
i
Plano Concave Lens 30mm Diameter −70mm Focal Length Uncoated
SLB-30-70N 		30mm 70mm
2 weeks
$37.23
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ30mm
Focal length f −70mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −71.3mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Plano Concave Lens 50.8mm Diameter −250mm Focal Length Uncoated
SLB-50.8-250N 		50.8mm 250mm
in stock
$56.61
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ50.8mm
Focal length f −250mm
Edge thickness te 5.5mm
Center thickness tc 3mm
Back focal length fb −252.0mm
Radius of curvature r 129.75mm
Centration ＜1′
i
Plano Concave Lens 10mm Diameter −20mm Focal Length Uncoated
SLB-10-20N 		10mm 20mm
in stock
$29.07
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Uncoated
Clear aperture 90% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating Uncoated
Diameter φD φ10mm
Focal length f −20mm
Edge thickness te 3.3mm
