N-BK7, BiConcave Lenses (AR 750-1550nm)

SLB-B-N-IR2

More about
N-BK7, BiConcave Lenses (AR 750-1550nm)
In stock
SKU
SLB-B-N-IR2
These biconcave lenses are Coated 750-1550nm.They are used when a very high negative power is required. They can be used in a multi-element system or alone to produce a diverging cone of virtual image.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters

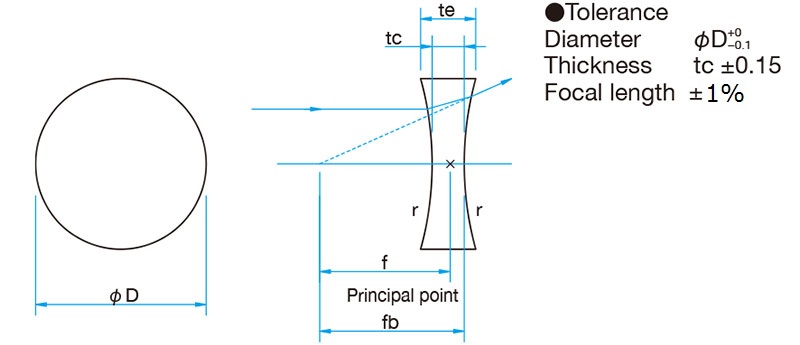

Name Diameter φD Focal length Delivery Price Add to cart
i
Biconcave Lens 30mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-30B-50NIR2 		30mm −49.7mm
6-12 weeks
$112.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ30mm
Focal length f −49.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 15mm Diameter −19.7mm Focal Length 750 - 1550nm
SLB-15B-20NIR2 		15mm −19.7mm
2 weeks
$81.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ15mm
Focal length f −19.7mm
Edge thickness te 4.8mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconcave Lens 40mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-40B-50NIR2 		40mm −49.7mm
6-12 weeks
$134.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ40mm
Focal length f −49.7mm
Edge thickness te 10mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 15mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-15B-40NIR2 		15mm −39.7mm
6-12 weeks
$78.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ15mm
Focal length f −39.7mm
Edge thickness te 3.4mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 50mm Diameter −59.5mm Focal Length 750 - 1550nm
SLB-50B-60NIR2 		50mm −59.5mm
6-12 weeks
$155.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50mm
Focal length f −59.5mm
Edge thickness te 13.5mm
Center thickness tc 3mm
Back focal length fb −60.5mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconcave Lens 20mm Diameter −24.7mm Focal Length 750 - 1550nm
SLB-20B-25NIR2 		20mm −24.7mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ20mm
Focal length f −24.7mm
Edge thickness te 6mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −49.5mm Focal Length 750 - 1550nm
SLB-50.8B-50NIR2 		50.8mm −49.5mm
in stock
$162.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −49.5mm
Edge thickness te 16.3mm
Center thickness tc 3mm
Back focal length fb −50.5mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 20mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-20B-50NIR2 		20mm −49.7mm
6-12 weeks
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ20mm
Focal length f −49.7mm
Edge thickness te 3.9mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −149.5mm Focal Length 750 - 1550nm
SLB-50.8B-150NIR2 		50.8mm −149.5mm
in stock
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −149.5mm
Edge thickness te 7.2mm
Center thickness tc 3mm
Back focal length fb −150.5mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −34.7mm Focal Length 750 - 1550nm
SLB-25B-35NIR2 		25mm −34.7mm
6-12 weeks
$108.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −34.7mm
Edge thickness te 6.4mm
Center thickness tc 2mm
Back focal length fb −35.3mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −299.5mm Focal Length 750 - 1550nm
SLB-50.8B-300NIR2 		50.8mm −299.5mm
in stock
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −299.5mm
Edge thickness te 5.1mm
Center thickness tc 3mm
Back focal length fb −300.5mm
Radius of curvature r 311.4mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −59.7mm Focal Length 750 - 1550nm
SLB-25B-60NIR2 		25mm −59.7mm
6-12 weeks
$100.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −59.7mm
Edge thickness te 4.5mm
Center thickness tc 2mm
Back focal length fb −60.3mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −99.7mm Focal Length 750 - 1550nm
SLB-25B-100NIR2 		25mm −99.7mm
2 weeks
$88.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −99.7mm
Edge thickness te 3.5mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −14.7mm Focal Length 750 - 1550nm
SLB-10B-15NIR2 		10mm −14.7mm
6-12 weeks
$74.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −14.7mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-25.4B-40NIR2 		25.4mm −39.7mm
in stock
$106.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −39.7mm
Edge thickness te 6mm
Center thickness tc 2mm
Back focal length fb −40.4mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −69.7mm Focal Length 750 - 1550nm
SLB-25.4B-70NIR2 		25.4mm −69.7mm
in stock
$97.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −69.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −70.4mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −29.7mm Focal Length 750 - 1550nm
SLB-10B-30NIR2 		10mm −29.7mm
6-12 weeks
$71.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −29.7mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −149.7mm Focal Length 750 - 1550nm
SLB-25.4B-150NIR2 		25.4mm −149.7mm
6-12 weeks
$88.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −149.7mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −150.4mm
Radius of curvature r 155.7mm
Centration ＜1′
i
Biconcave Lens 12.7mm Diameter −9.7mm Focal Length 750 - 1550nm
SLB-12.7B-10NIR2 		12.7mm −9.7mm
6-12 weeks
$76.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ12.7mm
Focal length f −9.7mm
Edge thickness te 6.3mm
Center thickness tc 2mm
Back focal length fb −10.3mm
Radius of curvature r 10.38mm
Centration ＜1′
i
Biconcave Lens 30mm Diameter −34.7mm Focal Length 750 - 1550nm
SLB-30B-35NIR2 		30mm −34.7mm
6-12 weeks
$119.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ30mm
Focal length f −34.7mm
Edge thickness te 8.5mm
Center thickness tc 2mm
Back focal length fb −35.3mm
Radius of curvature r 36.33mm
Centration ＜1′
i
Biconcave Lens 12.7mm Diameter −24.7mm Focal Length 750 - 1550nm
SLB-12.7B-25NIR2 		12.7mm −24.7mm
6-12 weeks
$72.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ12.7mm
Focal length f −24.7mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconcave Lens 30mm Diameter −99.7mm Focal Length 750 - 1550nm
SLB-30B-100NIR2 		30mm −99.7mm
6-12 weeks
$91.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ30mm
Focal length f −99.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconcave Lens 15mm Diameter −24.7mm Focal Length 750 - 1550nm
SLB-15B-25NIR2 		15mm −24.7mm
2 weeks
$80.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ15mm
Focal length f −24.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconcave Lens 40mm Diameter −99.7mm Focal Length 750 - 1550nm
SLB-40B-100NIR2 		40mm −99.7mm
6-12 weeks
$124.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ40mm
Focal length f −99.7mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −100.3mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconcave Lens 15mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-15B-50NIR2 		15mm −49.7mm
6-12 weeks
$77.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ15mm
Focal length f −49.7mm
Edge thickness te 3.1mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 50mm Diameter −69.5mm Focal Length 750 - 1550nm
SLB-50B-70NIR2 		50mm −69.5mm
2 weeks
$148.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50mm
Focal length f −69.5mm
Edge thickness te 11.9mm
Center thickness tc 3mm
Back focal length fb −70.5mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconcave Lens 20mm Diameter −29.7mm Focal Length 750 - 1550nm
SLB-20B-30NIR2 		20mm −29.7mm
2 weeks
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ20mm
Focal length f −29.7mm
Edge thickness te 5.3mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −59.5mm Focal Length 750 - 1550nm
SLB-50.8B-60NIR2 		50.8mm −59.5mm
in stock
$155.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −59.5mm
Edge thickness te 13.8mm
Center thickness tc 3mm
Back focal length fb −60.5mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −24.7mm Focal Length 750 - 1550nm
SLB-25B-25NIR2 		25mm −24.7mm
6-12 weeks
$112.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −24.7mm
Edge thickness te 8.4mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −199.5mm Focal Length 750 - 1550nm
SLB-50.8B-200NIR2 		50.8mm −199.5mm
6-12 weeks
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −199.5mm
Edge thickness te 6.1mm
Center thickness tc 3mm
Back focal length fb −200.5mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-25B-40NIR2 		25mm −39.7mm
6-12 weeks
$106.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −39.7mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −69.7mm Focal Length 750 - 1550nm
SLB-25B-70NIR2 		25mm −69.7mm
2 weeks
$97.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −69.7mm
Edge thickness te 4.2mm
Center thickness tc 2mm
Back focal length fb −70.3mm
Radius of curvature r 72.66mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −24.7mm Focal Length 750 - 1550nm
SLB-25.4B-25NIR2 		25.4mm −24.7mm
in stock
$112.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −24.7mm
Edge thickness te 8.6mm
Center thickness tc 2mm
Back focal length fb −25.4mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-25.4B-50NIR2 		25.4mm −49.7mm
in stock
$104.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −49.7mm
Edge thickness te 5.2mm
Center thickness tc 2mm
Back focal length fb −50.4mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −19.7mm Focal Length 750 - 1550nm
SLB-10B-20NIR2 		10mm −19.7mm
6-12 weeks
$72.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −19.7mm
Edge thickness te 3.2mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −79.7mm Focal Length 750 - 1550nm
SLB-25.4B-80NIR2 		25.4mm −79.7mm
in stock
$94.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −79.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −80.4mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-10B-40NIR2 		10mm −39.7mm
6-12 weeks
$70.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −39.7mm
Edge thickness te 2.6mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −199.7mm Focal Length 750 - 1550nm
SLB-25.4B-200NIR2 		25.4mm −199.7mm
in stock
$88.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −199.7mm
Edge thickness te 2.8mm
Center thickness tc 2mm
Back focal length fb −200.4mm
Radius of curvature r 207.6mm
Centration ＜1′
i
Biconcave Lens 12.7mm Diameter −14.7mm Focal Length 750 - 1550nm
SLB-12.7B-15NIR2 		12.7mm −14.7mm
6-12 weeks
$74.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ12.7mm
Focal length f −14.7mm
Edge thickness te 4.7mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Biconcave Lens 30mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-30B-40NIR2 		30mm −39.7mm
2 weeks
$116.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ30mm
Focal length f −39.7mm
Edge thickness te 7.6mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 15mm Diameter −14.7mm Focal Length 750 - 1550nm
SLB-15B-15NIR2 		15mm −14.7mm
6-12 weeks
$82.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ15mm
Focal length f −14.7mm
Edge thickness te 5.9mm
Center thickness tc 2mm
Back focal length fb −15.3mm
Radius of curvature r 15.57mm
Centration ＜1′
i
Biconcave Lens 40mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-40B-40NIR2 		40mm −39.7mm
6-12 weeks
$144.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ40mm
Focal length f −39.7mm
Edge thickness te 12.3mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 15mm Diameter −29.7mm Focal Length 750 - 1550nm
SLB-15B-30NIR2 		15mm −29.7mm
6-12 weeks
$79.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ15mm
Focal length f −29.7mm
Edge thickness te 3.8mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconcave Lens 50mm Diameter −49.5mm Focal Length 750 - 1550nm
SLB-50B-50NIR2 		50mm −49.5mm
6-12 weeks
$162.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50mm
Focal length f −49.5mm
Edge thickness te 15.8mm
Center thickness tc 3mm
Back focal length fb −50.5mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 20mm Diameter −19.7mm Focal Length 750 - 1550nm
SLB-20B-20NIR2 		20mm −19.7mm
6-12 weeks
$84.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ20mm
Focal length f −19.7mm
Edge thickness te 7.1mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′
i
Biconcave Lens 50mm Diameter −99.5mm Focal Length 750 - 1550nm
SLB-50B-100NIR2 		50mm −99.5mm
6-12 weeks
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50mm
Focal length f −99.5mm
Edge thickness te 9.1mm
Center thickness tc 3mm
Back focal length fb −100.5mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconcave Lens 20mm Diameter −39.7mm Focal Length 750 - 1550nm
SLB-20B-40NIR2 		20mm −39.7mm
6-12 weeks
$83.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ20mm
Focal length f −39.7mm
Edge thickness te 4.4mm
Center thickness tc 2mm
Back focal length fb −40.3mm
Radius of curvature r 41.52mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −99.5mm Focal Length 750 - 1550nm
SLB-50.8B-100NIR2 		50.8mm −99.5mm
in stock
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −99.5mm
Edge thickness te 9.3mm
Center thickness tc 3mm
Back focal length fb −100.5mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −29.7mm Focal Length 750 - 1550nm
SLB-25B-30NIR2 		25mm −29.7mm
6-12 weeks
$111.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −29.7mm
Edge thickness te 7.2mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconcave Lens 50.8mm Diameter −249.5mm Focal Length 750 - 1550nm
SLB-50.8B-250NIR2 		50.8mm −249.5mm
in stock
$141.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ50.8mm
Focal length f −249.5mm
Edge thickness te 5.5mm
Center thickness tc 3mm
Back focal length fb −250.5mm
Radius of curvature r 259.5mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-25B-50NIR2 		25mm −49.7mm
6-12 weeks
$104.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −49.7mm
Edge thickness te 5.1mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 25mm Diameter −79.7mm Focal Length 750 - 1550nm
SLB-25B-80NIR2 		25mm −79.7mm
6-12 weeks
$94.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25mm
Focal length f −79.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −80.3mm
Radius of curvature r 83.04mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −9.7mm Focal Length 750 - 1550nm
SLB-10B-10NIR2 		10mm −9.7mm
6-12 weeks
$76.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −9.7mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −10.3mm
Radius of curvature r 10.38mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −29.7mm Focal Length 750 - 1550nm
SLB-25.4B-30NIR2 		25.4mm −29.7mm
in stock
$111.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −29.7mm
Edge thickness te 7.4mm
Center thickness tc 2mm
Back focal length fb −30.4mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −59.7mm Focal Length 750 - 1550nm
SLB-25.4B-60NIR2 		25.4mm −59.7mm
in stock
$100.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −59.7mm
Edge thickness te 4.6mm
Center thickness tc 2mm
Back focal length fb −60.4mm
Radius of curvature r 62.28mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −24.7mm Focal Length 750 - 1550nm
SLB-10B-25NIR2 		10mm −24.7mm
6-12 weeks
$72.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −24.7mm
Edge thickness te 3mm
Center thickness tc 2mm
Back focal length fb −25.3mm
Radius of curvature r 25.95mm
Centration ＜1′
i
Biconcave Lens 25.4mm Diameter −99.7mm Focal Length 750 - 1550nm
SLB-25.4B-100NIR2 		25.4mm −99.7mm
6-12 weeks
$88.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ25.4mm
Focal length f −99.7mm
Edge thickness te 3.6mm
Center thickness tc 2mm
Back focal length fb −100.4mm
Radius of curvature r 103.8mm
Centration ＜1′
i
Biconcave Lens 10mm Diameter −49.7mm Focal Length 750 - 1550nm
SLB-10B-50NIR2 		10mm −49.7mm
6-12 weeks
$68.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ10mm
Focal length f −49.7mm
Edge thickness te 2.5mm
Center thickness tc 2mm
Back focal length fb −50.3mm
Radius of curvature r 51.9mm
Centration ＜1′
i
Biconcave Lens 30mm Diameter −29.7mm Focal Length 750 - 1550nm
SLB-30B-30NIR2 		30mm −29.7mm
6-12 weeks
$126.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ30mm
Focal length f −29.7mm
Edge thickness te 9.7mm
Center thickness tc 2mm
Back focal length fb −30.3mm
Radius of curvature r 31.14mm
Centration ＜1′
i
Biconcave Lens 12.7mm Diameter −19.7mm Focal Length 750 - 1550nm
SLB-12.7B-20NIR2 		12.7mm −19.7mm
6-12 weeks
$72.00
Material BK7
Design Wavelength 546.1nm
Refractive index n<sub>e</sub> 1.519
Coating Broadband Multilayer antireflection coating (750 - 1550nm)
Transmmittance > Average 98.5%
Laser Damage Threshold 4J/cm2 (Laser pulse width ; 10ns , Repetition frequency ; 20Hz)
Clear aperture 85% of the diameter
Surface Quality (Scratch-Dig) 20-10
Wavelength range of Antireflection Coating 750 - 1550nm
Diameter φD φ12.7mm
Focal length f −19.7mm
Edge thickness te 4mm
Center thickness tc 2mm
Back focal length fb −20.3mm
Radius of curvature r 20.76mm
Centration ＜1′

You must be logged in to ask questions

These biconcave lenses are Coated 750-1550nm.They are used when a very high negative power is required. They can be used in a multi-element system or alone to produce a diverging cone of virtual image.

Click here to receive announcements and exclusive promotions

Remind me later

Thank you! Please check your email inbox to confirm.

Oops! Notifications are disabled.
