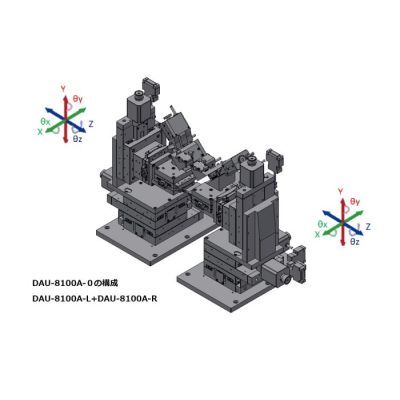

Motorized 12-axis Optical Fiber Alignment Stage Unit

Use of high-resolution stages enables alignment with high rigidity and high efficiency.
Compared with the conventional automatic alignment unit (DAU-080A type), it is more rigid and allows longer travel.
The magnetic mounting method and the positioning mechanism used in the holders ensure positional repeatability.
A variety of compatible holders enables application extension associated with device change. (Fiber holders, fiber rotation holders, fiber array holders, etc.)

Axis	X	Y	Z	θx	θy	θz
Component/ Part Number	TAMM100-50C	TAMM100-50CR	TAMM100-50CR	OSMS-40A60R	OSMS-60A105	OSMS-60A85R
Travel	50 mm	50 mm	50 mm	±5°	±7°	±9°
Resolution (Full)	2 µm	2 µm	2 µm	≒0.00217°	≒0.00189°	≒0.00229°
Resolution (Half)	1 µm	1 µm	1 µm	≒0.00108°	≒0.00095°	≒0.00115
Positioning Accuracy	<6 µm	<6 µm	<6 µm	-	-	-
Positional Repeatability	<1 µm	<1 µm	<1 µm	<±0.004°	<±0.004°	<±0.004°
