Objective lenses for visible range

OUCI-OBJECTIVES-VIS

Objective lenses for visible range
In stock
SKU
OUCI-OBJECTIVES-VIS
With its long working infinity correction function; this objective lens can be used for a laser system and coaxial observation. The objective will allow user to focus a visible laser or microscopic observation of objects from a distance.
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name Magnification Numerical Aperture Working Distance WD Delivery Price Add to cart
i
Long Working Distance Objective Lens 10mm Focal Length 20X
EPLE-20 		20× 0.4 11.1mm
in stock
$1,135.00
Magnification 20×
Numerical aperture (NA) 0.4
Working distance (WD) 11.1mm
Focal length f 10mm
Resolution 0.7μm
Focal depth ±1.7μm
Pupil diameter φ8mm
Real field of View (Eyepiece φ24mm) φ1.2mm
Real field of View (Imaging device 1/2-inch) 0.24×0.32mm
Weight 0.085kg
i
Long Working Distance Objective Lens 100mm Focal Length 2x Working Distance 34mm
PAL-2-B 		2× 0.055 34mm
6-12 weeks
$668.00
Item name MplanApo 2x
Magnification 2×
Numerical aperture (NA) 0.055
Working distance (WD) 34mm
Focal length f 100mm
Resolution 5μm
Focal depth ±91.0μm
Pupil diameter φ11.0mm
Real field of View (Eyepiece φ24mm) φ12.0mm
Real field of View (Imaging device 1/2-inch) 2.4×3.2mm
Weight 0.25kg
i
Long Working Distance Objective Lens 10mm Focal Length 20x Working Distance 31.1mm
PAL-20-L-A 		20× 0.30 31.1mm
6-12 weeks
$1,473.00
Item name MplanApo SL20x
Magnification 20×
Numerical aperture (NA) 0.3
Working distance (WD) 31.1mm
Focal length f 10mm
Resolution 0.92μm
Focal depth ±3.1μm
Pupil diameter φ6.0mm
Real field of View (Eyepiece φ24mm) φ1.2mm
Real field of View (Imaging device 1/2-inch) 0.24×0.32mm
Weight 0.28kg
i
Long Working Distance Objective Lens 40mm Focal Length 5X
EPL-5 		5× 0.13 11.6mm
in stock
$378.00
Magnification 5×
Numerical aperture (NA) 0.13
Working distance (WD) 11.6mm
Focal length f 40mm
Resolution 2.1μm
Focal depth ±16.3μm
Pupil diameter φ10.4mm
Real field of View (Eyepiece φ24mm) φ4.8mm
Real field of View (Imaging device 1/2-inch) 0.96×1.28mm
Weight 0.085kg
i
Long Working Distance Objective Lens 4mm Focal Length 50X
EPLE-50 		50× 0.55 8.2mm
2 weeks
$1,471.00
Magnification 50×
Numerical aperture (NA) 0.55
Working distance (WD) 8.2mm
Focal length f 4mm
Resolution 0.5μm
Focal depth ±0.9μm
Pupil diameter φ4.4mm
Real field of View (Eyepiece φ24mm) φ0.48mm
Real field of View (Imaging device 1/2-inch) 0.10×0.13mm
Weight 0.095kg
i
Long Working Distance Objective Lens 40mm Focal Length 5x Working Distance 41mm
PAL-5 		5× 0.14 41mm
6-12 weeks
$408.00
Item name MplanApo 5x
Magnification 5×
Numerical aperture (NA) 0.14
Working distance (WD) 41mm
Focal length f 40mm
Resolution 2μm
Focal depth ±14μm
Pupil diameter φ11.2mm
Real field of View (Eyepiece φ24mm) φ4.8mm
Real field of View (Imaging device 1/2-inch) 0.96×1.28mm
Weight 0.24kg
i

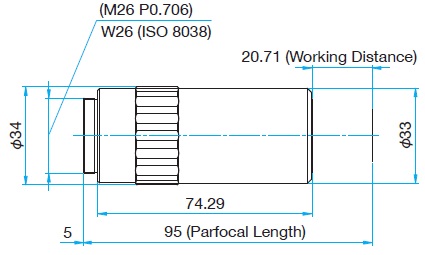

Long Working Distance Objective Lens 4mm Focal Length 50x Working Distance 20.7mm
PAL-50-L-A 		50× 0.42 20.7mm
6-12 weeks
$2,266.00
Item name MplanApo SL50x
Magnification 50×
Numerical aperture (NA) 0.42
Working distance (WD) 20.7mm
Focal length f 4mm
Resolution 0.65μm
Focal depth ±1.6μm
Pupil diameter φ3.4mm
Real field of View (Eyepiece φ24mm) φ0.48mm
Real field of View (Imaging device 1/2-inch) 0.10×0.13mm
Weight 0.31kg
i
Long Working Distance Objective Lens 20mm Focal Length 10X
EPL-10 		10× 0.30 6.4mm
in stock
$492.00
Magnification 10×
Numerical aperture (NA) 0.3
Working distance (WD) 6.4mm
Focal length f 20mm
Resolution 0.9μm
Focal depth ±3.1μm
Pupil diameter φ12mm
Real field of View (Eyepiece φ24mm) φ2.4mm
Real field of View (Imaging device 1/2-inch) 0.48×0.64mm
Weight 0.085kg
i
Long Working Distance Objective Lens 2mm Focal Length 100X
EPLE-100 		100× 0.8 2mm
in stock
$2,648.00
Magnification 100×
Numerical aperture (NA) 0.8
Working distance (WD) 2mm
Focal length f 2mm
Resolution 0.3μm
Focal depth ±0.4μm
Pupil diameter φ3.2mm
Real field of View (Eyepiece φ24mm) φ0.24mm
Real field of View (Imaging device 1/2-inch) 0.05×0.06mm
Weight 0.105kg
i
Long Working Distance Objective Lens 20mm Focal Length 10x Working Distance 34mm
PAL-10-A 		10× 0.30 34mm
6-12 weeks
$555.00
Item name MplanApo 10x
Magnification 10×
Numerical aperture (NA) 0.3
Working distance (WD) 34mm
Focal length f 20mm
Resolution 0.92μm
Focal depth ±3.1μm
Pupil diameter φ12.0mm
Real field of View (Eyepiece φ24mm) φ2.4mm
Real field of View (Imaging device 1/2-inch) 0.48×0.64mm
Weight 0.24kg
