Manual Vertical Observation Unit
OBUT-VM

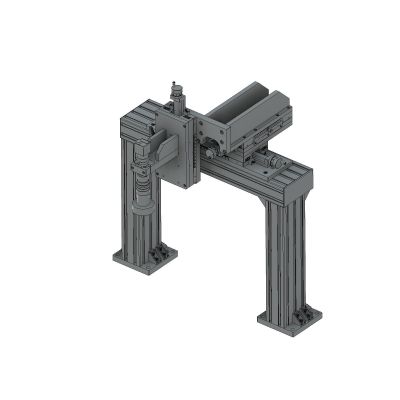

This unit is used to observe waveguide end faces, fiber end faces, devices, etc.
The camera can be used to observe the positional relationship of samples.
The vertical observation unit and the optional horizontal observation unit realize observation from both directions.
The adjustment of the unit can be selected between manual and automatic stages.
Vertical observation is standard with variable magnification using a zoom lens.
Horizontal observation is at a fixed magnification (1x), but can be changed to a zoom lens upon request.
The vertical observation unit and the optional horizontal observation unit realize observation from both directions.
The adjustment of the unit can be selected between manual and automatic stages.
Vertical observation is standard with variable magnification using a zoom lens.
Horizontal observation is at a fixed magnification (1x), but can be changed to a zoom lens upon request.
| X axis | Y axis | Z axis | |
|---|---|---|---|
| Component Products/Part Number | TAMC-10201 | TAMC-10201 | TAMC-10201 |
| Travel | 100mm | 100mm | 100mm |
| Resolution (min. reading) | 0.02mm | 0.02mm | 0.02mm |
| Observation magnification | 0.66x～4x |
| FOV of camera | 1.42mm×1.07mm～8.63mm×6.47mm |
| Resolution | 16.8µm～7.1µm |
Out of stock
SKU
OBUT-VM
Customize product
This unit is used to observe waveguide end faces, fiber end faces, devices, etc.
