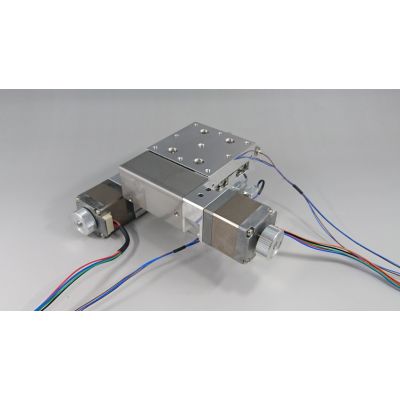

Vacuum Compatible Miniature Motorized Stages
VTAMM60S-20XY
×
CE-compliant compact motorized stages for use in high vacuum.
It is a motorized stage suitable for experiments in a vacuum environment and for use in a vacuum chamber.
Compact, slim body for minimal footprint. VTAMM can also be installed in small vacuum equipment.
It is a motorized stage suitable for experiments in a vacuum environment and for use in a vacuum chamber.
Compact, slim body for minimal footprint. VTAMM can also be installed in small vacuum equipment.
| Name | Vacuum Compatible Miniature Motorized Stages |
|---|---|
| Weight | 1.5000kgs |
| Guide | |
| Attention | - |
| Image Label | Vacuum Compatible Miniature Motorized Stages |
| Travel | 20mm |
| Load Capacity | 19.6N (2.0kg) |
| Travel | 20mm |
| Stage Size | 60×60mm |
| Feed Screw | Precision ground screw φ4mm、0.5mm lead |
| Positioning Slide | Crossed roller |
| Stage Material | Aluminium |
| Finish | None |
| Resolution (Half) | 1μm/pulse |
| Resolution (Full) | 0.5μm/pulse |
| MAX Speed | 5mm/sec |
| Positional Repeatability | 6μm |
| Load Capacity | 19.6N(2.0kgf) |
| Lost Motion | 5μm |
| Censer type | GN-PT5M3B-1 (Metrol Co., Ltd.) |
| Limit Sensor | Vacuum touch sensor (NORMAL CLOSE) |
| Origin Sensor | None |
| Proximity Origin Sensor | None |
In stock
SKU
VTAMM60S-20XY
Customize product
CE-compliant compact motorized stages for use in high vacuum.
It is a motorized stage suitable for experiments in a vacuum environment and for use in a vacuum chamber.
Compact, slim body for minimal footprint. VTAMM can also be installed in small vacuum equipment.
