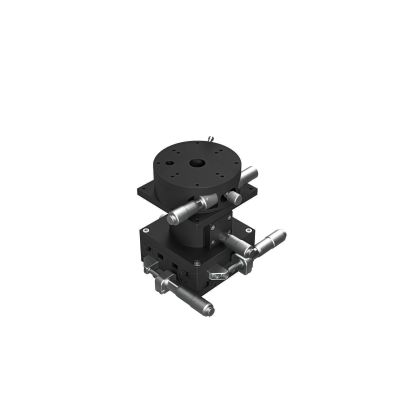

Steel Extended Contact XYZ with Rotation Stage 80mm Size MetricThreads

TSD-809S

3d-simple-product
High Precision manul translation stage assembly with fine adjustment in four axes.



More Information
Name Steel Extended Contact XYZ with Rotation Stage 80mm Size MetricThreads
Weight 3.1000kgs
Guide -
Attention -
Image Label Steel Extended Contact XYZ with Rotation Stage 80mm Size MetricThreads
Stage Size φ80mm
Travel X axis : ±12.5mm Z axis : ±5mm
Rotation Range Coarse:360° Fine:±5°
Load Capacity 58.8N (6.0kg)
Stage Size φ80mm
Travel X axis : ±12.5mm Z axis : ±5mm
Rotation Range Coarse:360° Fine:±5°
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 1N・m
Max. Moment Capacity / Roll 1N・m
Moment Stiffness / Pitch 1.51″/N・cm
Moment Stiffness / Yaw 1.51″/N・cm
Primary Material Steel Brass Aluminium
Finish Super black chrom
In stock
SKU
TSD-809S
$2,003.00

Delivery in : 6-12 weeks

High Precision manul translation stage assembly with fine adjustment in four axes.
