Motorized Rotation Stage High Accuracy 60mm Size

HDS-60YAW

Limited range high duty cycle rotation stage.

More Information
Name	Motorized Rotation Stage High Accuracy 60mm Size
Weight	0.5000kgs
Guide	The origin sensor for HDS series is near traveling center (0°).
Attention	The HDS series should always be mounted horizontally. Performance can not be guaranteed if used in other orientations. If other oritnations are required, please contact our Sales Division.

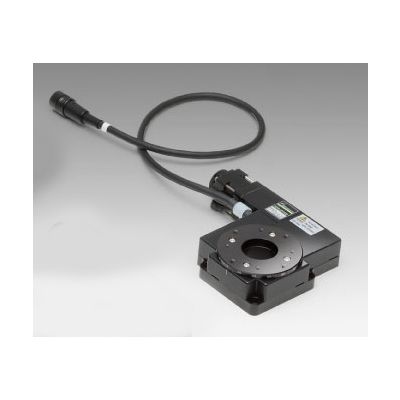

Image Label	Motorized Rotation Stage High Accuracy 60mm Size
Rotation Range	±5°
Load Capacity	29.4N (3.0kg)
Rotation Range	±5°
Stage Size	φ60mm
Travel Mechanism	Ball screw with steel belt
Positioning Slide	Bearing method
Stage Material	Aluminium
Finish	Black anodized
Resolution (Full)	about 0.0053°/pulse
Resolution (Half)	about 0.0027°/pulse
Minimum Incremental Motion (refurence)	0.5mdeg
MAX Speed	60°/sec
Positioning Accuracy	0.05°
Positional Repeatability	0.003°
Load Capacity	29.4N(3.0kgf)
Moment Stiffness	1″/N･cm
Lost Motion	0.003°
Backlash	0.05°
Parallelism	50μm
Concentricity	10μm
Wobble	0.01μm
Sensor Part Number	Micro photo sensor : GP1S097HCZ(Sharp Corporation)
Limit Sensor	Equipped (NORMAL CLOSE)
Origin Sensor	Equipped (NORMAL OPEN)
Proximity Origin Sensor	None

In stock

SKU

HDS-60YAW

$1,699.00

Limited range high duty cycle rotation stage.
