Precision Motorized Stages - 5 Phase Stepping Motor

HST-50X

CE
3d-simple-product

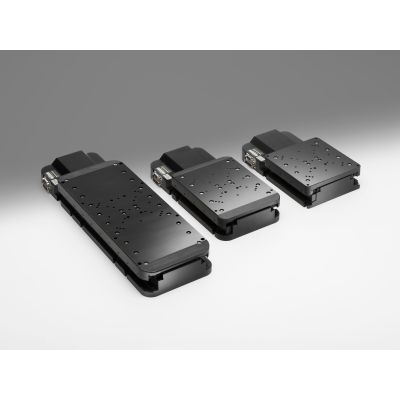

High precision X axis stages fitted with precision ball screws and precision crossed roller.



More Information
Name Precision Motorized Stages - 5 Phase Stepping Motor
Weight 8.7000kgs
Guide
  • Contact our Sales Division if you desire to change motors, etc. Or, use the motorized stage system question sheet.(WEB Reference Catalog Code/W9500) (Question Sheet)
  • Two single axis stages can be sent to OptoSigma to be assembled, aligned and tested for a nominal cost.
Attention
  • We will assemble your X axis stage with a newly purchased X axis stage at a separate cost.
Image Label Precision Motorized Stages - 5 Phase Stepping Motor
Travel 50mm
Load Capacity 392N (40.0kg)
Stage Size 165×165mm
Feed Screw Ball screw diameter φ10mm、2mm lead
Positioning Slide Crossed roller
Stage Material Steel
Resolution (Full) 4μm/pulse
Resolution (Half) 2μm/pulse
Minimum Incremental Motion (refurence) 0.1μm
MAX Speed 10mm/sec
Positioning Accuracy 5μm
Positional Repeatability 2μm
Load Capacity 392N(40.0kgf)
Moment Stiffness / Pitch 0.01″/N・cm
Moment Stiffness / Yaw 0.01″/N・cm
Moment Stiffness / Roll 0.005″/N・cm
Lost Motion 1μm
Backlash 1μm
Parallelism 50μm
Running Parallelism 10μm
Pitch 15″
Yaw 15″
Sensor Part Number Micro photo sensor : GP1S092HCPIF(Sharp Corporation)
Limit Sensor Equipped (NORMAL CLOSE)
Origin Sensor Equipped (NORMAL OPEN)
Proximity Origin Sensor Equipped (NORMAL OPEN)
In stock
SKU
HST-50X
$3,039.60

Delivery in : 6-12 weeks

High precision X axis stages fitted with precision ball screws and precision crossed roller.
