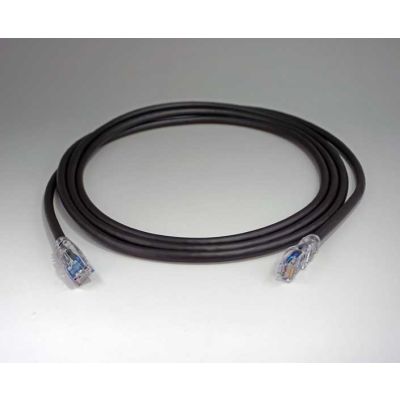

LAN Cable

LAN-2A

Skip to the beginning of the images gallery

Modular stage control system with Master controller and from one to eight slave Axes.

◦Control with RS232C/USB/Ethernet interfaces is available.
◦Full closed loop control is possible when used in positioning stage equipped with encoder.

More Information

More Information
Name	LAN Cable
Weight	0.2000kgs
Guide	Sample programs are available for download on our website. ◦SG Sample◦LabVIEW for RS232C (for v.2014/v.2015) Please click here to download a controller manual (HIT-MV, HIT-S, HIT-SH, HIT-SA). Please click here to download a controller manual (HIT-M, HIT-S).
Attention	(HIT-M・MV/ HIT-S) Power supply is DC+24V 1A. Depending on the number of stage axes, rated current of 2A (single axis) to 9A (8 axes) is required. Power supply is (HIT-SH/ SA) DC+24V 2A. Depending on the number of stage axes, rated current of 3A (single axis) to 17A (8 axes) is required. Please purchase the AC-ADP-2427 or PAT-001-POW1 (AC adapter) or prepare a power supply separately.
Cable Length	2 m

In stock

SKU

LAN-2A

$24.49

Modular stage control system with Master controller and from one to eight slave Axes.

LAN Cable
