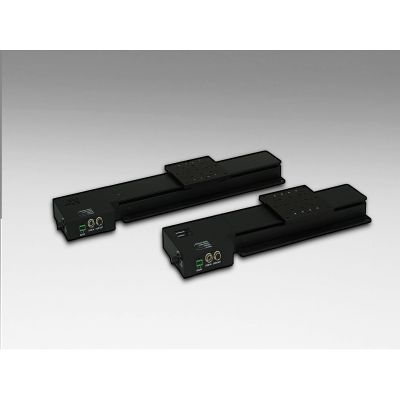

35mm Travel, X-Axis Stage, Built-In Controller, 120X120mm Platform, M6 Thread
SBIS26-35X-M6
Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
This motorized stage has a built-in 5-phase stepping motor driver and controller, saving on wiring and space, and can be controlled with simple commands. A maximum of 99 SBIS stages can be controlled by Daisy-Chain connection using our dedicated cables . When the command for connection is sent, the device number used for control is automatically assigned from 1 to 99 from the stage closest to the personal computer.
| Name | 35mm Travel, X-Axis Stage, Built-In Controller, 120X120mm Platform, M6 Thread |
|---|---|
| Weight | 3.0000kgs |
| Guide | For the cable that connects SBIS stages together, please purchase separately HR10HR10P-RC-1 (with power cable) or HR10HR10-RC-1 (without power cable). Please purchase D9HR10-RC-2 separately for the cable that connects the host PC and SBIS. The interface is RS232C. For the power supply, please purchase the recommended AC adapter AC-ADP-2433 separately. Power can be supplied for up to 3 axes. After the 4th axis, an additional AC adapter is required for every 3 axes. A manual knob allows stage adjustment when the power is off. The following sample programs can be downloaded SG Sample or LabVIEW for 32/64-bit Windows |
| Travel | 35mm |
| Load Capacity | 117N (12.0kg) |
| Mounting Thread | M6 |
| Stage Size | 120x120mm |
| Feed Screw | Ball screw diameter 8mmx2mm lead |
| Positioning Slide | Outer rail structure |
| Stage Material | Aluminium |
| Finish | Black anodized |
| Resolution | 50nm/pulse at 80 divisions/step |
| Minimum/Maximum Driving speed | 1pps/800,000pps |
| MAX Speed | 40mm/sec |
| Positioning Accuracy | 5um |
| Positional Repeatability | 3um |
| Moment Stiffness / Pitch | 0.23arcmin./N-cm |
| Moment Stiffness / Yaw | 0.12arcmin./N-cm |
| Moment Stiffness / Roll | 0.2arcmin./N-cm |
| Lost Motion | 3um |
| Backlash | 3um |
| Parallelism | 50um |
| Running Parallelism | 10um |
| Pitch | 25arcsec |
| Yaw | 20arcsec |
| Sensor Part Number | Micro photo sensor : GP1S092HCPIF(Sharp Corporation) |
| Limit Sensor | Equipped (NORMAL CLOSE) |
| Origin Sensor | Equipped (NORMAL OPEN) |
| Proximity Origin Sensor | None |
| Drive Currernt | 0.75A/Phase |
| Motor Type | 5-phase stepping motor |
| Microstep Range (maximum number of divisions) | 1 to 250 divisions |
| Motor Step Angle | 0.72 Deg. |
| Maximum number of control axes | 99 axes |
| Manual drive knob | Provided |
| Operating Temperature Range | 5 to 40Deg. C |
In stock
SKU
SBIS26-35X-M6
$2,425.00
Customize product
Stepping motor driven stages, ideal for positioning of measuring instruments or inspection tools for which high stiffness and high precision are required.
