Manual XZ Goniometer

STC-GOHT-XZ

Manual XZ Goniometer
Out of stock
SKU
STC-GOHT-XZ
An example on how to stack manual gniometers in XZ configuration with a angled bracket
Add to Wish List
custom product
Customize product
Filters
Enabled filters :
Remove all filters
Name
Stage Size
Angle Range
Load Capacity
Angle Range/(Upper) β axis
Delivery Price Add to cart
details
GOHT-40A60R
40×40mm ±8° 58.8N (6.0kg)
2-3 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A60R
60×60mm ±15° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B50BRUU
65×65mm 98N (10.0kg) ±20°
6-12 weeks
$2,074.00
Rotation Center Height 50±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.70°
Travel per Knob Rotation/(Lower) α axis about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A50BMSRUU
65×65mm ±10° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 50±0.1mm
Angle Range ±10°
Travel per Knob Rotation about 0.44°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20B
40×40mm 58.8N (6.0kg) ±20°
2-3 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details

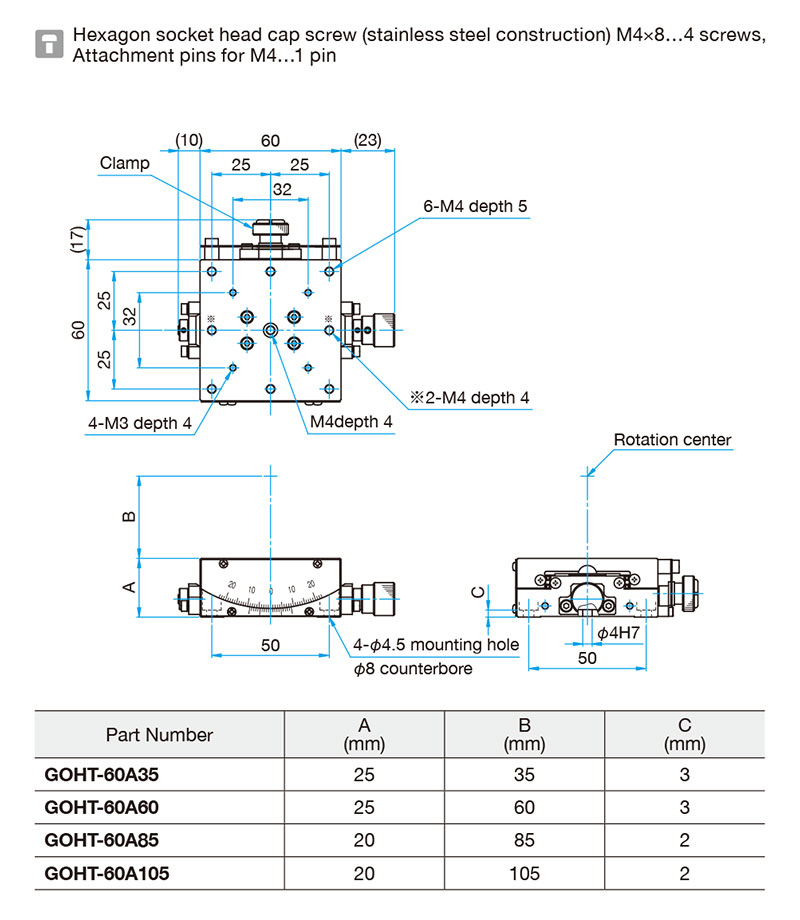

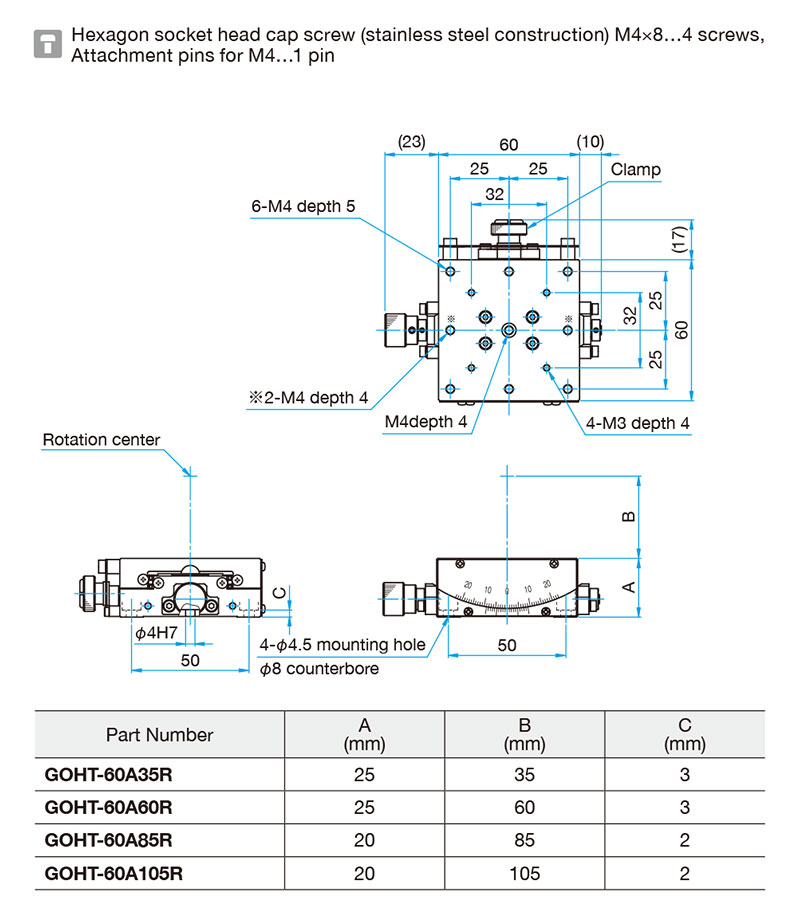

GOHT-60A105
60×60mm ±8° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 105±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B75BUU
65×65mm 98N (10.0kg) ±15°
6-12 weeks
$2,074.00
Rotation Center Height 75±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.22°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 65×65mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.5N・m
Max. Moment Capacity / Roll 6.5N・m
Max. Moment Capacity / Yaw 3.5N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-65A75BMSUU
65×65mm ±7° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.32°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B40BR
40×40mm 58.8N (6.0kg) ±10°
2-3 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B35BR
60×60mm 98N (10.0kg) ±20°
2-3 weeks
$1,885.00
Rotation Center Height 35±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.2°
Travel per Knob Rotation/(Lower) α axis about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20BMSR
40×40mm ±11° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±11°
Travel per Knob Rotation about 0.9°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BMSR-M6
65×65mm ±6° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 100±0.1mm
Angle Range ±6°
Travel per Knob Rotation about 0.25°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20BUU
40×40mm 58.8N (6.0kg) ±20°
6-12 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-60B85B
60×60mm 98N (10.0kg) ±10°
2-3 weeks
$1,885.00
Rotation Center Height 85±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.15°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-60B**B：Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-40A40BMS
40×40mm ±7° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.55°
Rotation Center Displacement φ0.007mm or less
details

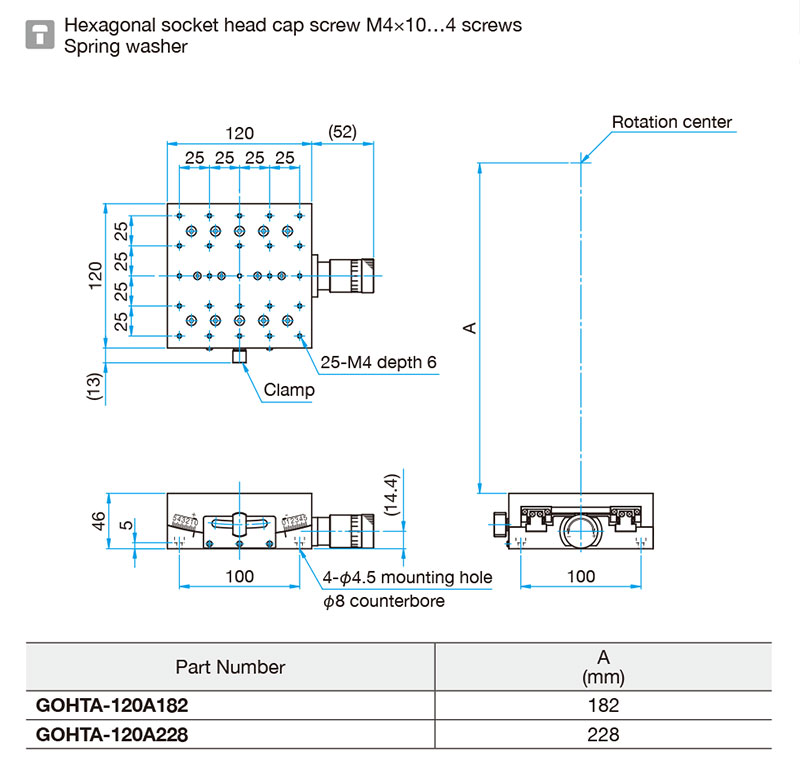

GOHTA-120A182
120×120mm ±5° 294N (30.0kg)
6-12 weeks
$5,301.00
Rotation Center Height 182mm
Angle Range ±5°
Vernier Readable Resolution 1′
Travel per Knob Rotation about 0.33°
Rotation Center Displacement φ0.02mm or less
details

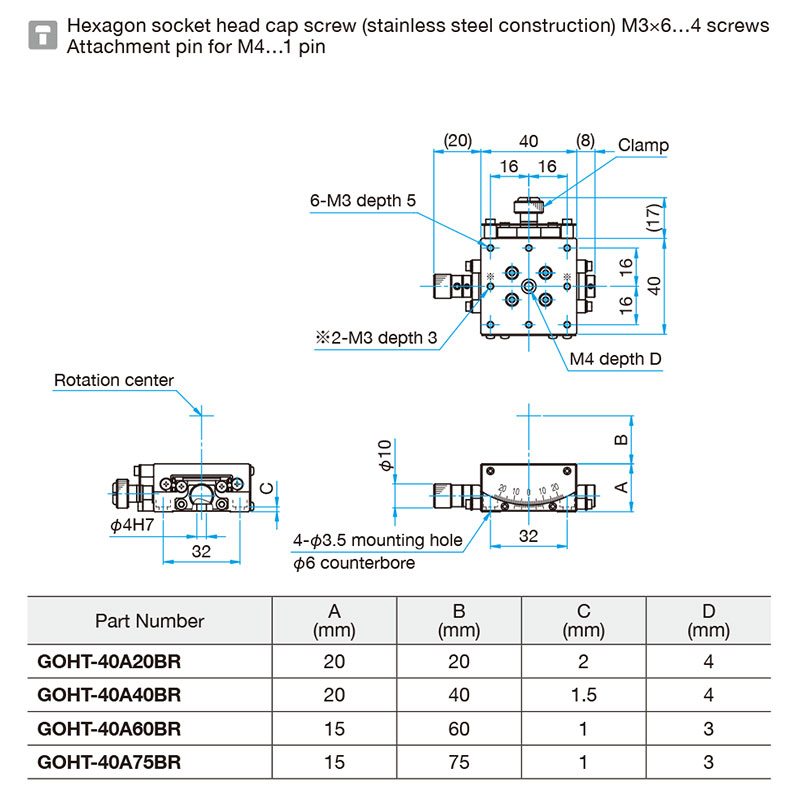

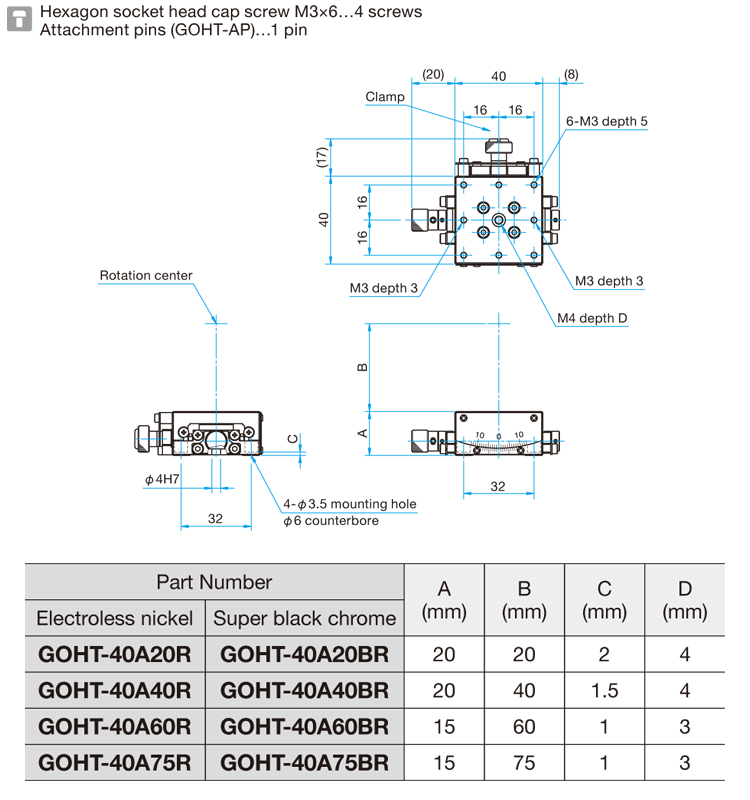

GOHT-40A20BR
40×40mm ±20° 58.8N (6.0kg)
in stock
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.34°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis α axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40A**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Moment Stiffness / Roll 0.6″/ N・cm
Moment Stiffness / Yaw 0.6″/ N・cm
Parallelism 30μm
details
GOHT-40B40BRUU
40×40mm 58.8N (6.0kg) ±10°
6-12 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B35R
60×60mm 98N (10.0kg) ±20°
2-3 weeks
$1,885.00
Rotation Center Height 35±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.2°
Travel per Knob Rotation/(Lower) α axis about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A40BMSRUU
40×40mm ±7° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.55°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A60B
40×40mm ±8° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20
40×40mm 58.8N (6.0kg) ±20°
6-12 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-60B85
60×60mm 98N (10.0kg) ±10°
2 weeks
$1,885.00
Rotation Center Height 85±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.15°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-60B**B：Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-40A60BMSUU
40×40mm ±5.5° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±5.5°
Travel per Knob Rotation about 0.42°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75BR
40×40mm ±6° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B40R
40×40mm 58.8N (6.0kg) ±10°
6-12 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details

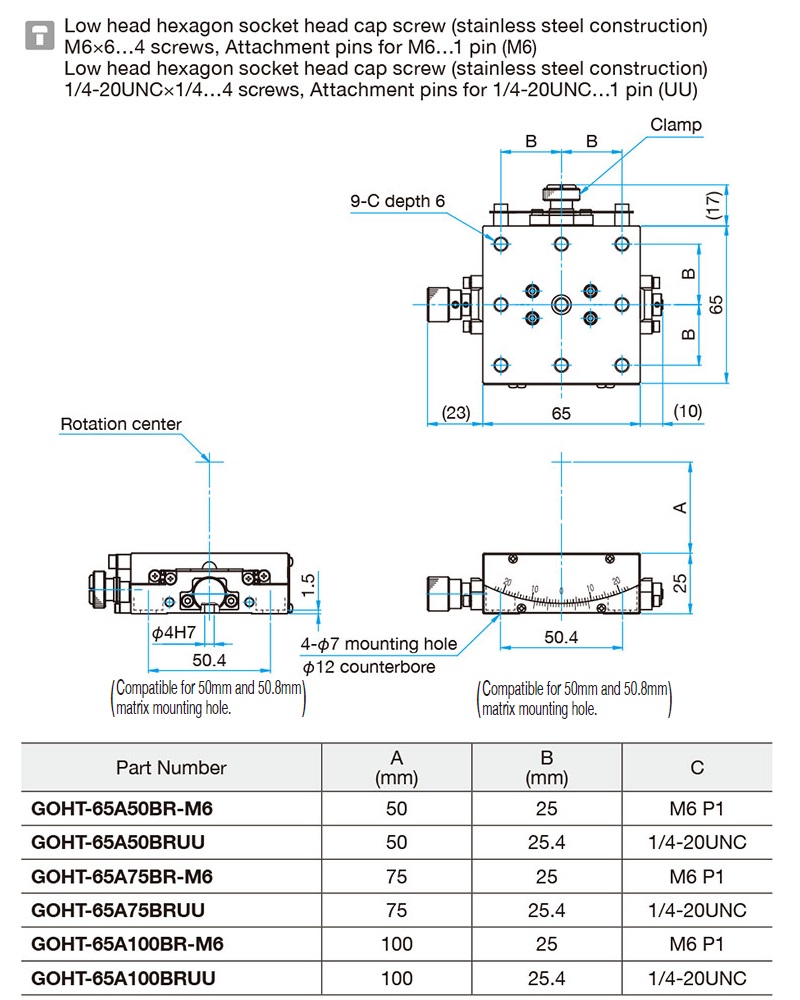

GOHT-65A50BR-M6
65×65mm ±20° 98N (10.0kg)
2-3 weeks
$1,037.00
Rotation Center Height 50±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.70°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75BMSR
40×40mm ±4.5° 58.8N (6.0kg)
in stock
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±4.5°
Travel per Knob Rotation about 0.35°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A40BUU
40×40mm ±10° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.41°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A35B
60×60mm ±20° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 35±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.2°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A75B-M6
65×65mm ±15° 98N (10.0kg)
2 weeks
$1,037.00
Rotation Center Height 75±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A35BMS
60×60mm ±7° 98N (10.0kg)
in stock
$942.00
Rotation Center Height 35±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.57°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis α axis
Micrometer Position Side
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 6.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll 0.25″/N･cm
Moment Stiffness / Yaw 0.1″/N・cm
Parallelism 30μm
details
GOHT-40A60BRUU
40×40mm ±8° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A60BR
60×60mm ±15° 98N (10.0kg)
2-3 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A75BRUU
65×65mm ±15° 98N (10.0kg)
6-12 weeks
$1,037.00
Rotation Center Height 75±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A60BMSR
60×60mm ±4.5° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±4.5°
Travel per Knob Rotation about 0.38°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20
40×40mm ±20° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.34°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis α axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40A**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Moment Stiffness / Roll 0.6″/ N・cm
Moment Stiffness / Yaw 0.6″/ N・cm
Parallelism 30μm
details
GOHT-60A105B
60×60mm ±8° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 105±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BUU
65×65mm ±10° 98N (10.0kg)
2 weeks
$1,037.00
Rotation Center Height 100±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A105BMS
60×60mm ±3° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 105±0.1mm
Angle Range ±3°
Travel per Knob Rotation about 0.25°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A40R
40×40mm ±10° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.41°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A35R
60×60mm ±20° 98N (10.0kg)
2-3 weeks
$942.00
Rotation Center Height 35±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.2°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B50BR-M6
65×65mm 98N (10.0kg) ±20°
2-3 weeks
$2,074.00
Rotation Center Height 50±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.70°
Travel per Knob Rotation/(Lower) α axis about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A50BMSR-M6
65×65mm ±10° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 50±0.1mm
Angle Range ±10°
Travel per Knob Rotation about 0.44°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75
40×40mm ±6° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A85
60×60mm ±10° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 85±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B75B-M6
65×65mm 98N (10.0kg) ±15°
2-3 weeks
$2,074.00
Rotation Center Height 75±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.22°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 65×65mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.5N・m
Max. Moment Capacity / Roll 6.5N・m
Max. Moment Capacity / Yaw 3.5N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-65A75BMS-M6
65×65mm ±7° 98N (10.0kg)
in stock
$1,037.00
Rotation Center Height 75±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.32°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20BR
40×40mm 58.8N (6.0kg) ±20°
2-3 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-60A105R
60×60mm ±8° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 105±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B75BRUU
65×65mm 98N (10.0kg) ±15°
in stock
$2,074.00
Rotation Center Height 75±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.22°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 65×65mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.5N・m
Max. Moment Capacity / Roll 6.5N・m
Max. Moment Capacity / Yaw 3.5N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-65A75BMSRUU
65×65mm ±7° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.32°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B60B
40×40mm 58.8N (6.0kg) ±8°
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B60B
60×60mm 98N (10.0kg) ±15°
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.46°
Travel per Knob Rotation/(Lower) α axis about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20BMSUU
40×40mm ±11° 58.8N (6.0kg)
in stock
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±11°
Travel per Knob Rotation about 0.9°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BMSUU
65×65mm ±6° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 100±0.1mm
Angle Range ±6°
Travel per Knob Rotation about 0.25°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20BRUU
40×40mm 58.8N (6.0kg) ±20°
6-12 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-60B85BR
60×60mm 98N (10.0kg) ±10°
2-3 weeks
$1,885.00
Rotation Center Height 85±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.15°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-60B**B：Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-40A40BMSR
40×40mm ±7° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.55°
Rotation Center Displacement φ0.007mm or less
details
GOHTA-120A228
120×120mm ±5° 294N (30.0kg)
6-12 weeks
$5,301.00
Rotation Center Height 228mm
Angle Range ±5°
Vernier Readable Resolution 1′
Travel per Knob Rotation about 0.33°
Rotation Center Displacement φ0.02mm or less
details
GOHT-40A40B
40×40mm ±10° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.41°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B60BUU
40×40mm 58.8N (6.0kg) ±8°
6-12 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B60
60×60mm 98N (10.0kg) ±15°
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.46°
Travel per Knob Rotation/(Lower) α axis about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A60BMS
40×40mm ±5.5° 58.8N (6.0kg)
in stock
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±5.5°
Travel per Knob Rotation about 0.42°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A60BR
40×40mm ±8° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B20R
40×40mm 58.8N (6.0kg) ±20°
6-12 weeks
$1,885.00
Rotation Center Height 20±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.34°
Travel per Knob Rotation/(Lower) α axis about 1.41°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40B**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 2.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Parallelism 30μm
details
GOHT-60B85R
60×60mm 98N (10.0kg) ±10°
2-3 weeks
$1,885.00
Rotation Center Height 85±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.15°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-60B**B：Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-40A60BMSRUU
40×40mm ±5.5° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±5.5°
Travel per Knob Rotation about 0.42°
Rotation Center Displacement φ0.007mm or less
details

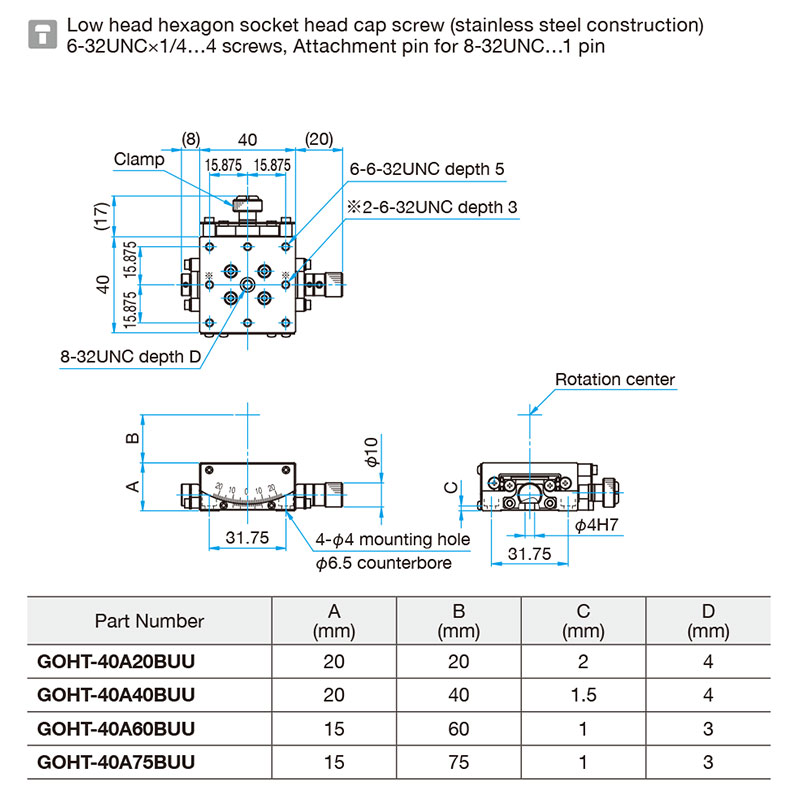

GOHT-40A20BUU
40×40mm ±20° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.34°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis α axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40A**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Moment Stiffness / Roll 0.6″/ N・cm
Moment Stiffness / Yaw 0.6″/ N・cm
Parallelism 30μm
details
GOHT-40B60
40×40mm 58.8N (6.0kg) ±8°
6-12 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details

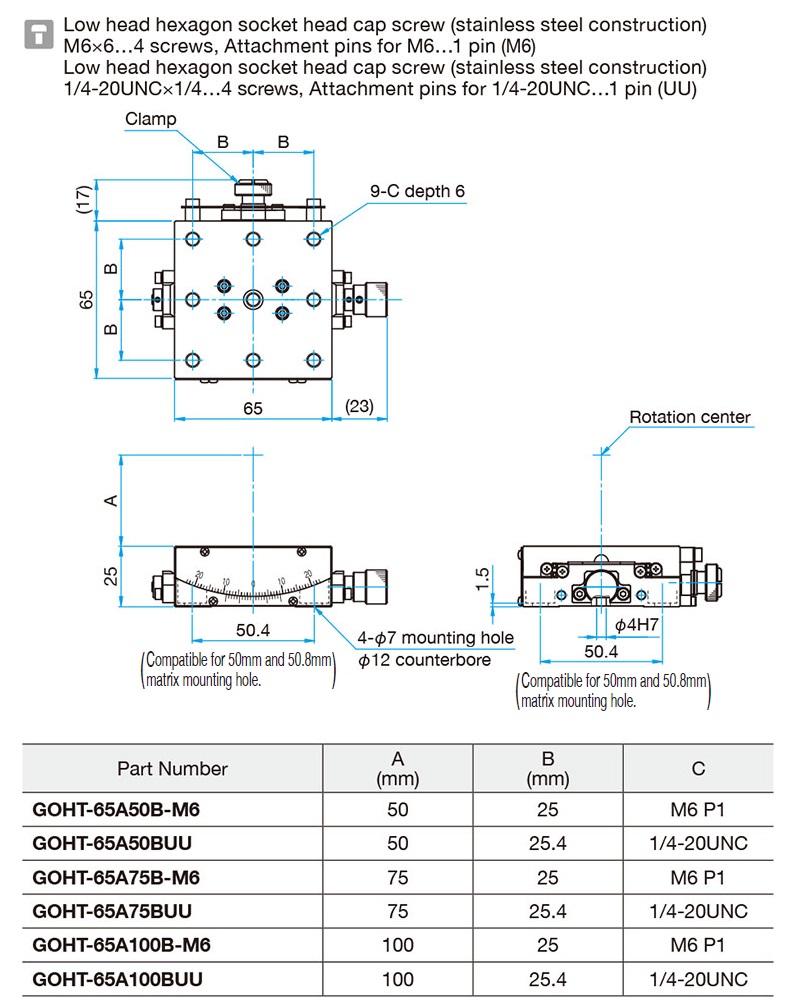

GOHT-65A50BUU
65×65mm ±20° 98N (10.0kg)
6-12 weeks
$1,037.00
Rotation Center Height 50±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.70°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75BMSUU
40×40mm ±4.5° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±4.5°
Travel per Knob Rotation about 0.35°
Rotation Center Displacement φ0.007mm or less
details

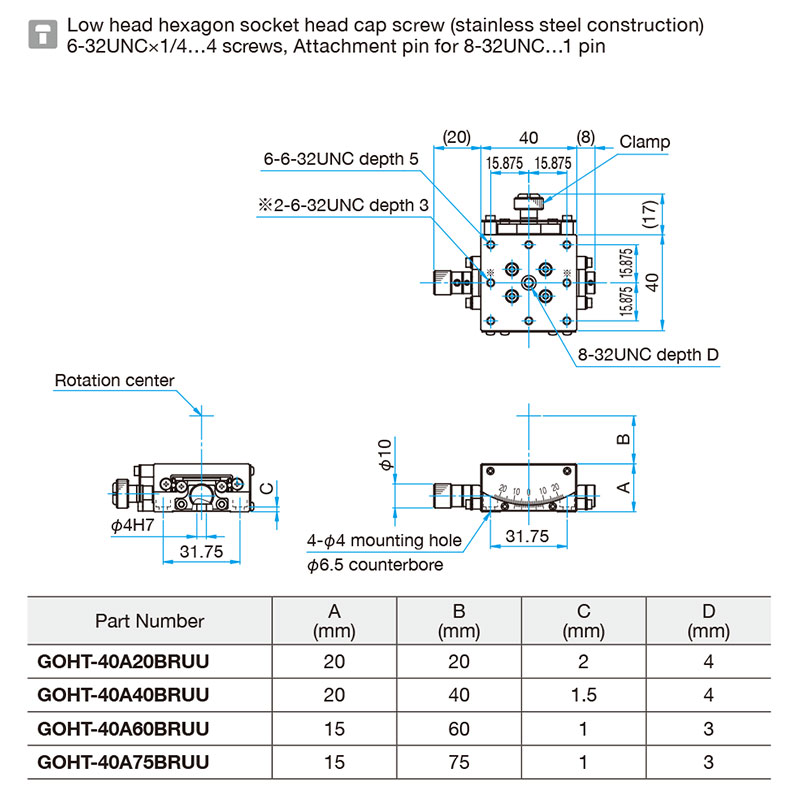

GOHT-40A40BRUU
40×40mm ±10° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.41°
Rotation Center Displacement φ0.007mm or less
details

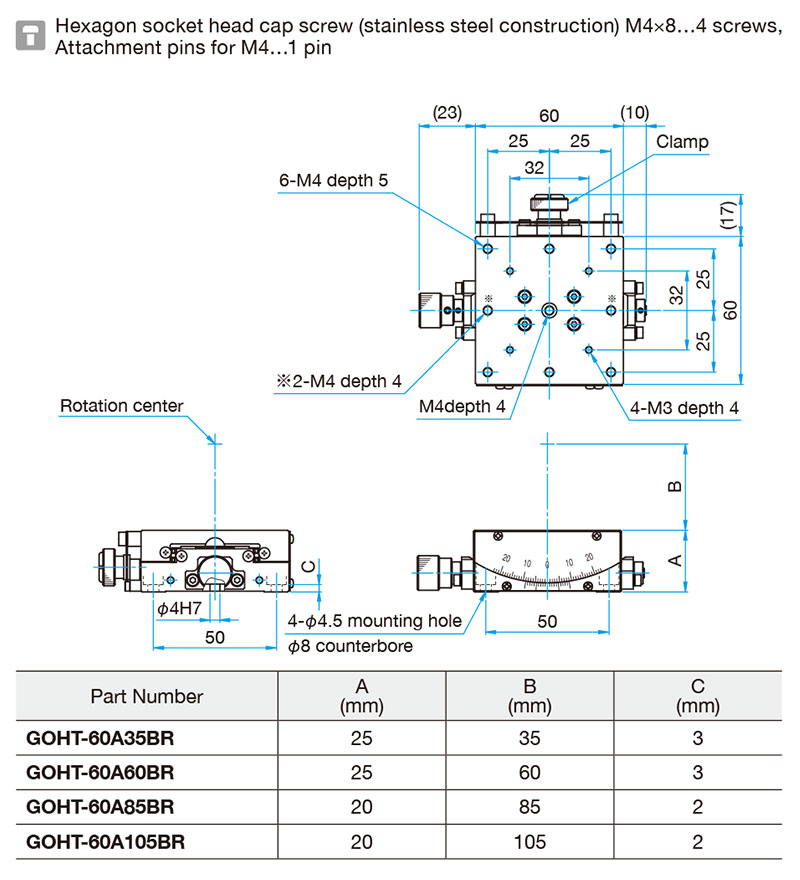

GOHT-60A35BR
60×60mm ±20° 98N (10.0kg)
2-3 weeks
$942.00
Rotation Center Height 35±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.2°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A75BR-M6
65×65mm ±15° 98N (10.0kg)
2-3 weeks
$1,037.00
Rotation Center Height 75±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A35BMSR
60×60mm ±7° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 35±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.57°
Rotation Center Displacement φ0.007mm or less
Stage Size 60×60mm
Type of Axis α axis
Micrometer Position Side
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.0N・m
Max. Moment Capacity / Roll 6.0N・m
Max. Moment Capacity / Yaw 3.0N・m
Moment Stiffness / Roll 0.25″/N･cm
Moment Stiffness / Yaw 0.1″/N・cm
Parallelism 30μm
details
GOHT-40A75BUU
40×40mm ±6° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.89°
Rotation Center Displacement φ0.007mm or less
details

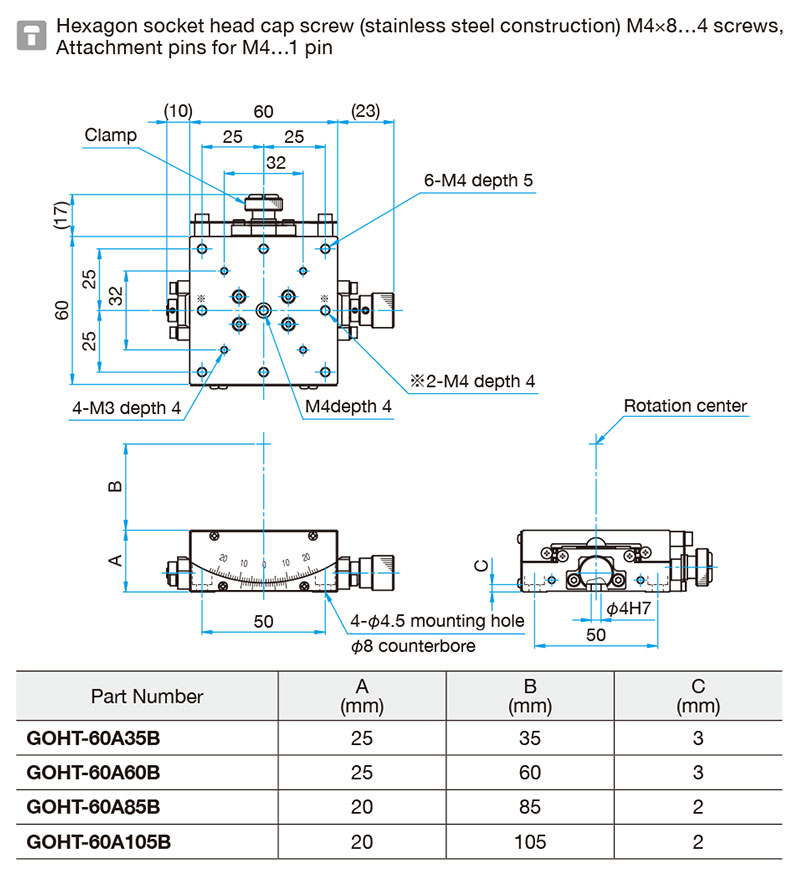

GOHT-60A85B
60×60mm ±10° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 85±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100B-M6
65×65mm ±10° 98N (10.0kg)
in stock
$1,037.00
Rotation Center Height 100±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A85BMS
60×60mm ±3.5° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 85±0.1mm
Angle Range ±3.5°
Travel per Knob Rotation about 0.3°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20R
40×40mm ±20° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.34°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis α axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40A**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Moment Stiffness / Roll 0.6″/ N・cm
Moment Stiffness / Yaw 0.6″/ N・cm
Parallelism 30μm
details
GOHT-60A105BR
60×60mm ±8° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 105±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BRUU
65×65mm ±10° 98N (10.0kg)
2-3 weeks
$1,037.00
Rotation Center Height 100±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A105BMSR
60×60mm ±3° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 105±0.1mm
Angle Range ±3°
Travel per Knob Rotation about 0.25°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A60
40×40mm ±8° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.08°
Rotation Center Displacement φ0.007mm or less
Surface finishing white coating of electroless nickel plating
details
GOHT-60A60
60×60mm ±15° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B50BUU
65×65mm 98N (10.0kg) ±20°
6-12 weeks
$2,074.00
Rotation Center Height 50±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.70°
Travel per Knob Rotation/(Lower) α axis about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A50BMSUU
65×65mm ±10° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 50±0.1mm
Angle Range ±10°
Travel per Knob Rotation about 0.44°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75R
40×40mm ±6° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A85R
60×60mm ±10° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 85±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B75BR-M6
65×65mm 98N (10.0kg) ±15°
2-3 weeks
$2,074.00
Rotation Center Height 75±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.22°
Travel per Knob Rotation/(Lower) α axis about 0.95°
Rotation Center Displacement φ0.007mm or less
Stage Size 65×65mm
Type of Axis αβ axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Super black chrome
Load Capacity 98N(10.0kgf)
Max. Moment Capacity / Pitch 3.5N・m
Max. Moment Capacity / Roll 6.5N・m
Max. Moment Capacity / Yaw 3.5N・m
Moment Stiffness / Roll －
Moment Stiffness / Yaw －
Parallelism 30μm
details
GOHT-65A75BMSR-M6
65×65mm ±7° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.32°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B40B
40×40mm 58.8N (6.0kg) ±10°
2-3 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B35B
60×60mm 98N (10.0kg) ±20°
2-3 weeks
$1,885.00
Rotation Center Height 35±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.2°
Travel per Knob Rotation/(Lower) α axis about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20BMS
40×40mm ±11° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±11°
Travel per Knob Rotation about 0.9°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BMS-M6
65×65mm ±6° 98N (10.0kg)
2 weeks
$1,037.00
Rotation Center Height 100±0.1mm
Angle Range ±6°
Travel per Knob Rotation about 0.25°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B60BR
40×40mm 58.8N (6.0kg) ±8°
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B60BR
60×60mm 98N (10.0kg) ±15°
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.46°
Travel per Knob Rotation/(Lower) α axis about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20BMSRUU
40×40mm ±11° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±11°
Travel per Knob Rotation about 0.9°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BMSRUU
65×65mm ±6° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 100±0.1mm
Angle Range ±6°
Travel per Knob Rotation about 0.25°
Rotation Center Displacement φ0.007mm or less
details

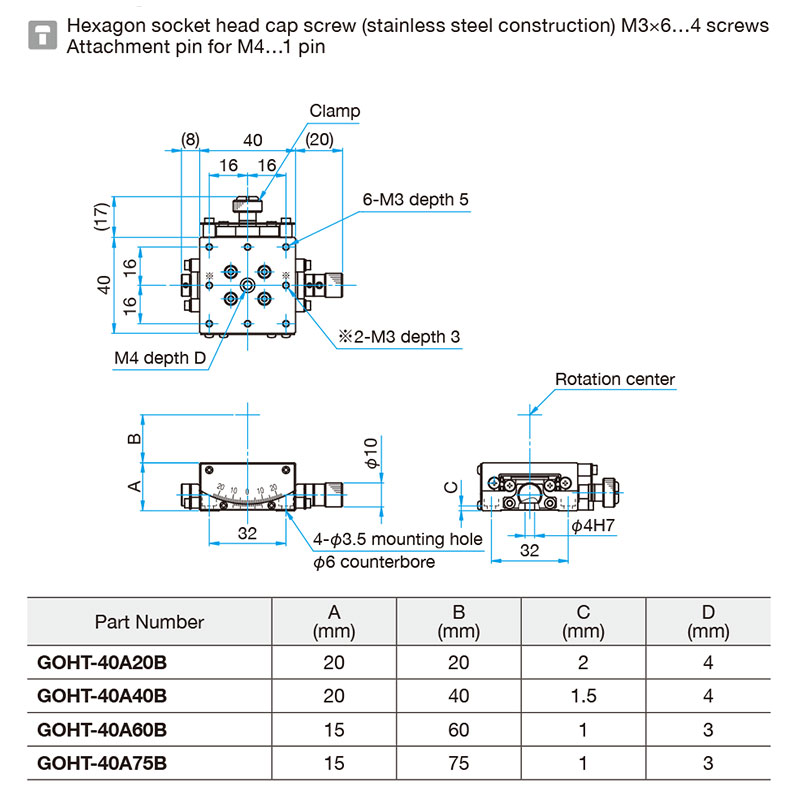

GOHT-40A20B
40×40mm ±20° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.34°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis α axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40A**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Moment Stiffness / Roll 0.6″/ N・cm
Moment Stiffness / Yaw 0.6″/ N・cm
Parallelism 30μm
details
GOHT-40B40BUU
40×40mm 58.8N (6.0kg) ±10°
6-12 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B35
60×60mm 98N (10.0kg) ±20°
2-3 weeks
$1,885.00
Rotation Center Height 35±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 2.2°
Travel per Knob Rotation/(Lower) α axis about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A40BMSUU
40×40mm ±7° 58.8N (6.0kg)
in stock
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±7°
Travel per Knob Rotation about 0.55°
Rotation Center Displacement φ0.007mm or less
details
GOHTA-120B182
120×120mm 294N (30.0kg) ±5°
6-12 weeks
$10,603.00
Rotation Center Height 182mm
Angle Range/(Upper) β axis ±5°
Angle Range/(Lower) α axis ±5°
Vernier Readable Resolution 1′
Travel per Knob Rotation/(Upper) β axis about 0.33°
Travel per Knob Rotation/(Lower) α axis about 0.33°
Rotation Center Displacement φ0.02mm or less
details
GOHT-40A40BR
40×40mm ±10° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.41°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B60BRUU
40×40mm 58.8N (6.0kg) ±8°
6-12 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60B60R
60×60mm 98N (10.0kg) ±15°
2-3 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±15°
Angle Range/(Lower) α axis ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.46°
Travel per Knob Rotation/(Lower) α axis about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A60BMSR
40×40mm ±5.5° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±5.5°
Travel per Knob Rotation about 0.42°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75B
40×40mm ±6° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40B40
40×40mm 58.8N (6.0kg) ±10°
6-12 weeks
$1,885.00
Rotation Center Height 40±0.2mm
Angle Range/(Upper) β axis ±10°
Angle Range/(Lower) α axis ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.41°
Travel per Knob Rotation/(Lower) α axis about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A50B-M6
65×65mm ±20° 98N (10.0kg)
2 weeks
$1,037.00
Rotation Center Height 50±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.70°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75BMS
40×40mm ±4.5° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±4.5°
Travel per Knob Rotation about 0.35°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A20BRUU
40×40mm ±20° 58.8N (6.0kg)
2-3 weeks
$942.00
Rotation Center Height 20±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.34°
Rotation Center Displacement φ0.007mm or less
Stage Size 40×40mm
Type of Axis α axis
Guide Method Extended Contact Ball Bearing Guide
Primary material SUS440C quench hardened
Finish Electroless nickel　GOHT-40A**B：Super black chrome
Load Capacity 58.8N(6.0kgf)
Max. Moment Capacity / Pitch 2.0N・m
Max. Moment Capacity / Roll 3.0N・m
Max. Moment Capacity / Yaw 2.0N・m
Moment Stiffness / Roll 0.6″/ N・cm
Moment Stiffness / Yaw 0.6″/ N・cm
Parallelism 30μm
details
GOHT-40B60R
40×40mm 58.8N (6.0kg) ±8°
6-12 weeks
$1,885.00
Rotation Center Height 60±0.2mm
Angle Range/(Upper) β axis ±8°
Angle Range/(Lower) α axis ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.08°
Travel per Knob Rotation/(Lower) α axis about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A50BRUU
65×65mm ±20° 98N (10.0kg)
6-12 weeks
$1,037.00
Rotation Center Height 50±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.70°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75BMSRUU
40×40mm ±4.5° 58.8N (6.0kg)
2 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±4.5°
Travel per Knob Rotation about 0.35°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A60BUU
40×40mm ±8° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±8°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.08°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A60B
60×60mm ±15° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.46°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A75BUU
65×65mm ±15° 98N (10.0kg)
6-12 weeks
$1,037.00
Rotation Center Height 75±0.1mm
Angle Range ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A60BMS
60×60mm ±4.5° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 60±0.1mm
Angle Range ±4.5°
Travel per Knob Rotation about 0.38°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A75BRUU
40×40mm ±6° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 75±0.1mm
Angle Range ±6°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.89°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A85BR
60×60mm ±10° 98N (10.0kg)
2-3 weeks
$942.00
Rotation Center Height 85±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.15°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A100BR-M6
65×65mm ±10° 98N (10.0kg)
2-3 weeks
$1,037.00
Rotation Center Height 100±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 0.95°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A85BMSR
60×60mm ±3.5° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 85±0.1mm
Angle Range ±3.5°
Travel per Knob Rotation about 0.3°
Rotation Center Displacement φ0.007mm or less
details
GOHT-40A40
40×40mm ±10° 58.8N (6.0kg)
6-12 weeks
$942.00
Rotation Center Height 40±0.1mm
Angle Range ±10°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 1.41°
Rotation Center Displacement φ0.007mm or less
details
GOHT-60A35
60×60mm ±20° 98N (10.0kg)
2 weeks
$942.00
Rotation Center Height 35±0.1mm
Angle Range ±20°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation about 2.2°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65B50B-M6
65×65mm 98N (10.0kg) ±20°
2-3 weeks
$2,074.00
Rotation Center Height 50±0.2mm
Angle Range/(Upper) β axis ±20°
Angle Range/(Lower) α axis ±15°
Vernier Readable Resolution 0.1°
Travel per Knob Rotation/(Upper) β axis about 1.70°
Travel per Knob Rotation/(Lower) α axis about 1.22°
Rotation Center Displacement φ0.007mm or less
details
GOHT-65A50BMS-M6
65×65mm ±10° 98N (10.0kg)
6-12 weeks
$942.00
Rotation Center Height 50±0.1mm
Angle Range ±10°
Travel per Knob Rotation about 0.44°
Rotation Center Displacement φ0.007mm or less
details
GOHT-AP-10
in stock
$12.71
Compatible Products GOHT-40・60、TSDH-60
Primary Material、Finish SUS303,None
Quantity 10 pieces
details
GOHT-A
6-12 weeks
-
Contact us
details
GOHT-B
6-12 weeks
-
Contact us
details
GOHTA-B
6-12 weeks
-
Contact us
details
GOHTA-A
6-12 weeks
-
Contact us

You must be logged in to ask questions
