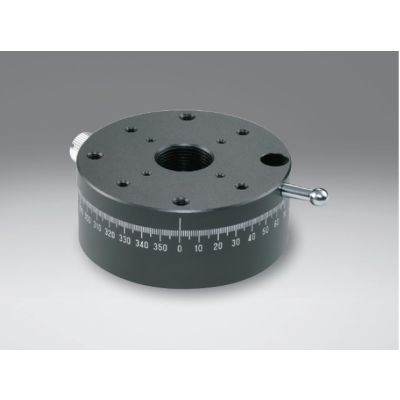

60mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, Manual Drive, M4 Threads
KSC-606
×
The KSC stage is Light weight, simple rotation stage. Manually positioned using handle with lock for securing position after adjustment.
| Name | 60mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, Manual Drive, M4 Threads |
|---|---|
| Weight | 0.1900kgs |
| Guide | - |
| Attention | - |
| Image Label | Rotation Stage Aluminum 60mm Diameter with Course Adjustment and Lockable with Metric Holes |
| Stage Size | φ60mm |
| Rotation Range | 360° |
| Load Capacity | 68.6N (7.0kg) |
| Mounting Thread | M4 |
| Stage Size | φ60mm |
| Rotation Range | 360° |
| Scale Readable Resolution | 1° |
| Micrometer Readable Resolution | - |
| Guide Method | Lapping method |
| Primary Material | Aluminum |
| Finish | Black anodized |
| Load Capacity | 68.6N(7.0kgf) |
| Max. Moment Capacity | - |
| Moment Stiffness | 1.5″/N･cm |
| Parallelism | 50μm |
| Eccentricity | 20μm |
| Wobble | 20μm |
In stock
SKU
KSC-606
$199.00
Customize product
The KSC stage is Light weight, simple rotation stage. Manually positioned using handle with lock for securing position after adjustment.
