98mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M4 Threads
KSPA-986M
×
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
| Name | 98mm Diameter, Aluminum, Lapped-Surface Bearing Rotation Stage, 360 Deg Manual Rotation, +/-5 Deg Fine Adjustment, Micrometer Drive, M4 Threads |
|---|---|
| Weight | 0.7000kgs |
| Guide |
|
| Attention | - |

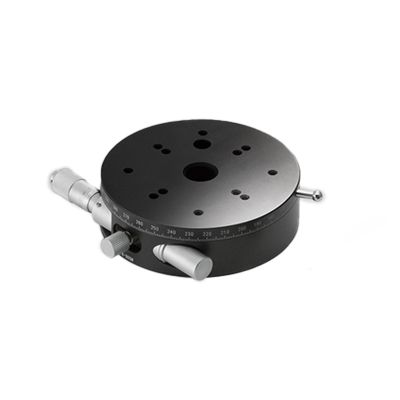

| Image Label | Rotation Stage Aluminum 98mm with 360 Degree Course Adjustment and 10 Degree Fine Micrometer Adjustment and Lockable with Metric Holes |
| Stage Size | φ98mm |
| Rotation Range | Coarse:360° Fine:±5° |
| Load Capacity | 68.6N (7.0kg) |
| Mounting Thread | M4 |
| Stage Size | φ98mm |
| Rotation Range | Coarse:360° Fine:±5° |
| Scale Readable Resolution | 5′ |
| Micrometer Readable Resolution | about 52.9″ |
| Guide Method | Lapping method |
| Primary Material | Aluminum |
| Finish | Black anodized |
| Load Capacity | 68.6N(7.0kgf) |
| Max. Moment Capacity | 1.0N･m |
| Moment Stiffness | 0.8″/N･cm |
| Parallelism | 50μm |
| Eccentricity | 20μm |
| Wobble | 20μm |
In stock
SKU
KSPA-986M
$521.00
Customize product
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
