160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads
KSPB-1606MHUU
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
◦Crossed roller bearing for high precision and high stiffness.
◦Vernier scales for reading angular position.
◦Center hole extends completely through stage.
◦Available with micrometers or fine pitch screws.
◦Vernier scales for reading angular position.
◦Center hole extends completely through stage.
◦Available with micrometers or fine pitch screws.
| Name | 160mm Diameter, Brass, Crossed-Roller Bearing Rotation Stage, 360 Deg Manual Rotation, +/-3 Deg Fine Adjustment, Micrometer Drive, 1/4-20 Threads |
|---|---|
| Weight | 1.5000kgs |
| Guide |
|
| Attention | - |

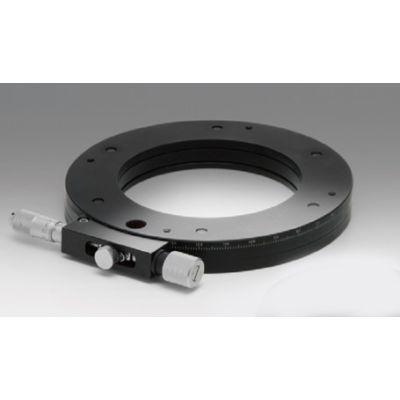

| Image Label | Rotation Stage Brass 160mm with Aperture 360 Degree Course Adjustment and 6 Degree Fine Micrometer Adjustment and Lockable with Inch Holes |
| Stage Size | φ160mm |
| Rotation Range | Coarse:360° Fine:±3° |
| Load Capacity | 196N (20.0kg) |
| Mounting Thread | 1/4-20UNC |
| Stage Size | φ160mm |
| Rotation Range | Coarse:360° Fine:±3° |
| Scale Readable Resolution | 5′ |
| Micrometer Readable Resolution | about 23.7″ |
| Guide Method | Crossed roller |
| Primary Material | Brass |
| Finish | Super black chrome |
| Load Capacity | 196N(20.0kgf) |
| Max. Moment Capacity | 9.8N･m |
| Moment Stiffness | 0.15″/N･cm |
| Parallelism | 50μm |
| Eccentricity | 30μm |
| Wobble | 30μm |
In stock
SKU
KSPB-1606MHUU
$1,253.00
Customize product
Low profile rotation stages offer coarse rotation adjustment of 360° and fine adjustment (with either a micrometer head or fine-pitch screw).
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
Directly rotate the stage upper plate for coarse adjustment, then clamp the clutch screw and use micrometer head or fine-pitch screw (±5°) for fine adjustment.
