40X40mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Micrometer, +/-6.5mm, M3 Threads

TAM-403L

×
3d-simple-product

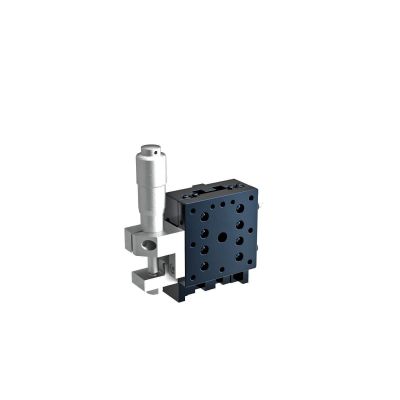

main product photo
Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.

See the Right Handed version of this product
TAM-403RL




More Information
Name 40X40mm Crossed-Roller Bearing, Aluminum, Z-Axis Stage, (Vertical Platform/Horizontal Base) Side Micrometer, +/-6.5mm, M3 Threads
Weight 0.1500kgs
Guide
  • The part number suffix FP indicates products with fine-pitch screws instead of standard micrometers.
  • Fine Pitch screws have a screw pitch of 0.25mm and require a hex wrench or the optional hex wrench with knob (KCL) for adjustment.(WEB Reference Catalog Code/W8008-3)
Attention -
Image Label Aluminum Crossed Roller X Stage Size Metric Threads
Stage Size 40×40mm
Load Capacity 49N (5.0kg)
Mounting Thread M3
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
In stock
SKU
TAM-403L
$437.00

Delivery in : 2 weeks

custom product
Customize product
Add to Wish List
Light-weight Z axis aluminum stages with integrated angle bracket.
Crossed roller guide enable smooth travel.
