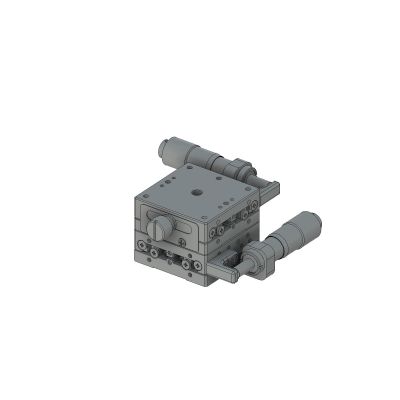

40X40mm EXC Bearing, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-6.5mm, M3 Threads

TSDH-402WS

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.

See the Right Handed version of this product

More Information
Name	40X40mm EXC Bearing, Stainless Steel, XY-Axis Stage, Side Micrometer, +/-6.5mm, M3 Threads
Weight	0.4000kgs
Guide	Also available with a super black chrome surface finish. Please contact sales for more information. For the TSDH series, you can select opposite side locking by specifying the option code (suffix: OC).
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.
Image Label	Stainless Steel XY Stage 40x40mm Metric Threads Side Drive
Stage Size	40×40mm
Travel	±6.5mm
Load Capacity	196N (20.0kg)
Mounting Thread	M3
Micrometer Position	Side
Lead of Actuator	0.5mm
Micrometer Readable Resolution	0.01mm

In stock

SKU

TSDH-402WS

$819.00

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.
