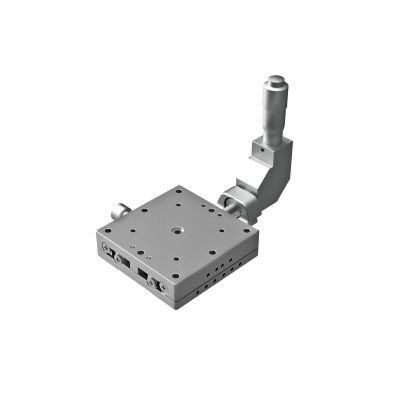

60X60mm EXC Bearing, Stainless Steel, X-Axis Stage, Center 90-Deg. Micrometer, +/-6.5mm, M4 Threads

TSDH-601CDL

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.

More Information
Name	60X60mm EXC Bearing, Stainless Steel, X-Axis Stage, Center 90-Deg. Micrometer, +/-6.5mm, M4 Threads
Weight	0.4500kgs
Guide	Also available with a super black chrome surface finish. Please contact sales for more information. For the TSDH series, you can select opposite side locking by specifying the option code (suffix: OC).
Attention	Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.
Image Label	Stainless Steel X Stage 60x60mm Metric Threads Center Drive with Differential Micrometer
Stage Size	60×60mm
Travel	±6.5mm
Load Capacity	343N (35.0kg)
Mounting Thread	M4
Micrometer Position	Center
Lead of Actuator	0.5mm
Micrometer Readable Resolution	0.01mm

In stock

SKU

TSDH-601CDL

$719.00

High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.
