40X40mm EXC Bearing, Stainless Steel, X-Axis Stage, Side 90-Deg. Micrometer, +/-6.5mm, M3 Threads, Right-handed

TSDH-401SRDL

×
3d-simple-product

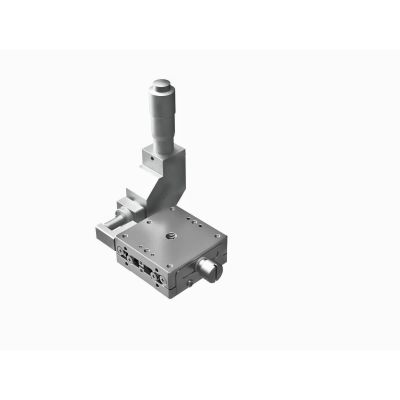

main product photo
High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.

See the Left Handed version of this product
TSDH-401SDL




More Information
Name 40X40mm EXC Bearing, Stainless Steel, X-Axis Stage, Side 90-Deg. Micrometer, +/-6.5mm, M3 Threads, Right-handed
Weight 0.2000kgs
Guide
  • Also available with a super black chrome surface finish. Please contact sales for more information.
  • For the TSDH series, you can select opposite side locking by specifying the option code (suffix: OC).
Attention
  • Micrometer brackets may extend above the top surface of some stages. Check drawings for detailed information.
Image Label Stainless Steel X Stage 40x40mm Metric Threads Side Drive Right Hand with Differential Micrometer
Stage Size 40×40mm
Travel ±6.5mm
Load Capacity 196N (20.0kg)
Mounting Thread M3
Micrometer Position Side
Lead of Actuator 0.5mm
Micrometer Readable Resolution 0.01mm
In stock
SKU
TSDH-401SRDL
$698.00

Delivery in : 6-12 weeks

custom product
Customize product
Add to Wish List
High precision stainless steel translation stages with “Extended Contact” bearing ways. High stiffness. Not intended for vacuum applications.
