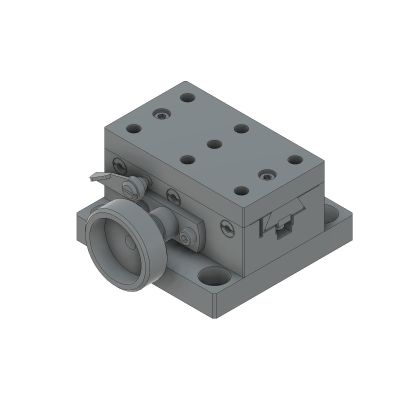

38X65mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-15mm, M6 Threads

TAR-38651-M6

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.

More Information
Name	38X65mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-15mm, M6 Threads
Weight	0.6000kgs
Guide	Use adaptor plates for TAR (SP-109 (WEB Reference Catalog Code/W6061) and SP-131（ (WEB Reference Catalog Code/W6073）) to mount post holders and various stages.
Attention	-
Image Label	Rack and Pinion Dovetail X Stage 38×65mm Size Metric Threads 30mm Travel
Stage Size	38×65mm
Travel	±15mm
Load Capacity	147N (15.0kg)
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Lead of Actuator	about 20mm
Vernier Scale	0.1mm
Travel Accuracy / Straightness	20μm
Max. Moment Capacity / Pitch	2.9N･m
Max. Moment Capacity / Roll	1.5N･m
Max. Moment Capacity / Yaw	2.0N･m
Moment Stiffness / Pitch	0.36″/N･cm
Moment Stiffness / Roll	0.82″/N･cm
Parallelism	60μm

In stock

SKU

TAR-38651-M6

$256.00

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.
