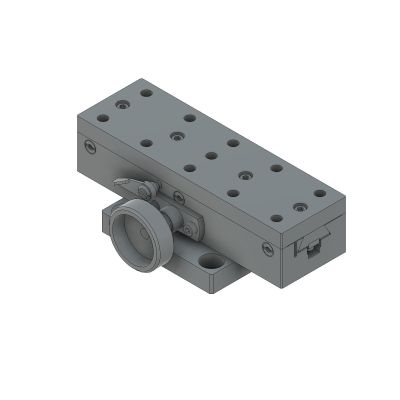

38X120mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-40mm, 1/4-20 Threads

TAR-381201UU

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.

More Information
Name	38X120mm Dovetail Bearing, Brass, X-Axis Stage, Rack&Pinion Drive, +/-40mm, 1/4-20 Threads
Weight	1.0000kgs
Guide	Use adaptor plates for TAR (SP-109 (WEB Reference Catalog Code/W6061) and SP-131（ (WEB Reference Catalog Code/W6073）) to mount post holders and various stages.
Attention	-
Image Label	Rack and Pinion Dovetail X Stage 38×120mm Size Inch Threads 80mm Travel
Stage Size	38×120mm
Travel	±40mm
Load Capacity	245N (25.0kg)
Guide Method	Dovetail method
Primary Material	Brass
Finish	Super black chrome
Lead of Actuator	about 20mm
Vernier Scale	0.1mm
Travel Accuracy / Straightness	30μm
Max. Moment Capacity / Pitch	6.0N･m
Max. Moment Capacity / Roll	1.5N･m
Max. Moment Capacity / Yaw	3.0N･m
Moment Stiffness / Pitch	0.7″/N･cm
Moment Stiffness / Roll	0.2″/N･cm
Parallelism	80μm

In stock

SKU

TAR-381201UU

$340.00

Rack and pinion dovetail translation stages, suitable for frequent use that requires quick movement and long travel.
