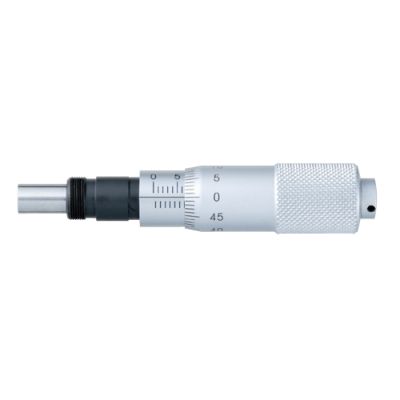

15mm Travel Micrometer Head, Flat Carbide Tip, 9.5mm Shank Diameter
SHM2-15
×
Micrometer heads used with Opto Sigma manual stages and holders.(Travel: 15mm or less)
| Name | 15mm Travel Micrometer Head, Flat Carbide Tip, 9.5mm Shank Diameter |
|---|---|
| Weight | 0.0600kgs |
| Guide | - |
| Attention |
|
| Image Label | Micrometer head Standard 9.5mm shank 15mm of travel |
| Travel | 0 - 15mm |
| Travel | 0 - 15mm |
| Type | Standard |
| Readable Resolution | 0.01mm |
| Lead of Actuator | 0.5mm |
| Load Capacity (Static load) | 39.2N(4kgf) |
| Tip Style | Flat |
In stock
SKU
SHM2-15
$67.00
Customize product
Micrometer heads used with Opto Sigma manual stages and holders.(Travel: 15mm or less)
